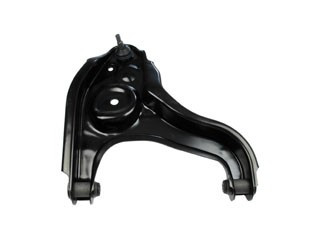

Dorman 520-329 front left lower control arm with ball joint for the 1994-1999 Dodge Ram 1500 and other vehicles connects the front left wheel to the frame and carries the ball joint. This Dorman suspension control arm and ball joint assembly is a direct replacement for the original equipment.
- Standard replacement grade
- Ball joint and bushings come pre-installed, which saves time and labor
- Pre-greased assembly with a threaded ball joint stud
- Additional coatings resist rust and corrosion
- Tested through an evaluation process aimed at a smooth ride, directional stability and predictable dynamics
Quick facts
- Part: Dorman 520-329 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 1994-1999 Dodge Ram 1500 and other vehicles
- Position: Front left lower
- Material: Steel (control arm), rubber (bushings)
- Condition: New
A clunk over bumps, wandering steering or uneven front tire wear can mean this arm or its ball joint is worn, though a tie rod end or a sway bar link can be behind the same signs.
Fits
This is one of the control arms for the 1994-1999 Dodge Ram 1500, and it also fits the 1995-1996 and 1999 Dodge Ramcharger. This listing is one arm for the front left; the front right is a separate part, and the two sides of that axle are normally replaced at the same time.
Specifications
Fit and size
- Position: front left lower
- Quantity per vehicle: 1 on this side
- Maximum length: 237 mm
- Maximum width: 288.5 mm
- Mounting hole diameter: 12.3 mm, 1 hole
- Ball joint thread diameter: 14 mm
Build and materials
- Control arm material: steel
- Construction: casting/forged
- Bushing material: rubber
- Ball joint stud: threaded, pre-greased
- Adjustable: no
- Condition: new
- Country of origin: Taiwan
In the box
One control arm with ball joint and mounting hardware. A grease fitting is not included. This listing holds one arm, and the front left side takes one; the front right is ordered separately.
Interchange: 52038407-L
52038407 · CA18025 · CK620480 · RK620480 · FA4469 · GS20376 · CMS20376 · 2605573 · 11CB25033 · JTC2358
This part cross-references / interchanges with the following part numbers:
52038407, CA18025, CK620480, RK620480, FA4469, GS20376, CMS20376, 2605573, 11CB25033, 52038407-L, JTC2358
