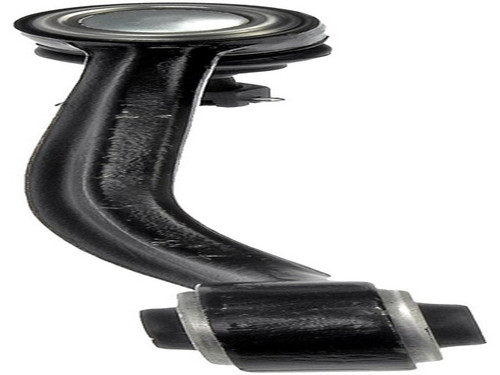

Dorman 521-740 front right upper control arm with ball joint for the 2011-2014 Hyundai Equus and other vehicles holds the front wheel to the suspension. The arm pivots on its bushings as the suspension moves, and the ball joint lets the wheel assembly pivot with it.
- Part of the Dorman OE Solutions line
- Ball joint and bushings pre-installed on the arm
- Steel arm with rubber bushings and a threaded ball joint stud
- Additional coatings for rust and corrosion resistance
- Tested for a smooth, stable ride and directional stability
Quick facts
- Part: Dorman 521-740 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2011-2014 Hyundai Equus and other vehicles
- Position: Front right upper forward
- Material: Steel control arm, rubber bushings
- Condition: New
Worn shocks, tie rod ends or a wheel bearing can be behind a clunk over bumps, loose-feeling steering or uneven tire wear, just as a worn arm can, so find the cause before buying. If the arm is the cause, this one replaces the arm, ball joint and bushings as one piece.
Fits
It is a direct replacement for the original assembly on the 2011-2014 Hyundai Equus and the 2009-2014 Hyundai Genesis. This listing is one arm for the front right, and the Genesis takes one on that side. The front left is a separate part, and both sides are normally replaced together.
Specifications
Fit and size
- Position: front right upper forward
- Quantity per vehicle: 1
- Mounting hole diameter: 12.3 mm
- Ball joint thread diameter: 14 mm
- Maximum width: 288.5 mm
- Maximum length: 237 mm
Build and materials
- Type: control arm with ball joint, casting/forged
- Control arm material: steel
- Bushing material: rubber
- Ball joint stud: threaded
- Grade: standard replacement
- Condition: new
- Country of origin: Turkey
In the box
One control arm with ball joint, and mounting hardware.
Installation notes
- Arrives pre-greased and has no grease fitting.
- Fitting one assembly saves time and labor.
Interchange: 102-7162
TC7413 · CA2231 · 544013M000 · 1CB90098 · RK621570 · CMS90182 · 2606400 · X18CJ0854
This part cross-references / interchanges with the following part numbers:
102-7162, TC7413, CA2231, 544013M000, 1CB90098, RK621570, CMS90182, 2606400, X18CJ0854
Frequently Asked Questions
Is this Dorman control arm right for the 2009-2014 Hyundai Genesis?
Yes. Dorman 521-740 fits the 2009-2014 Hyundai Genesis and the 2011-2014 Hyundai Equus, in the front right upper forward position.
Are the Dorman control arm bushings already installed on this arm?
Yes. Dorman 521-740 comes with the ball joint and rubber bushings pre-installed, and mounting hardware is included.
What stud thread does this Dorman suspension control arm and ball joint assembly have?
The ball joint stud is threaded, with a 14 mm thread diameter. The arm itself has a 12.3 mm mounting hole.
Does this Dorman upper control arm need a grease fitting?
No. This arm arrives pre-greased and has no grease fitting. Additional coatings give it rust and corrosion resistance.
Is this Dorman suspension control arm made of steel?
Yes. The control arm is steel of casting/forged construction, with rubber bushings. Dorman 521-740 is a standard replacement grade.
