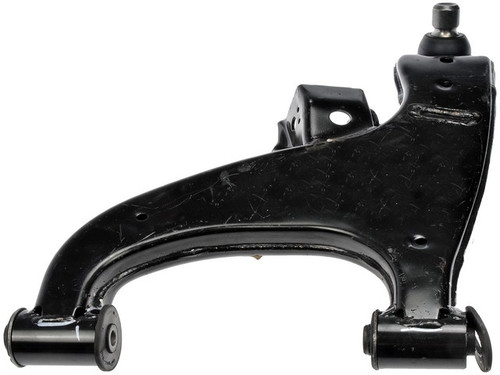

Dorman 522-007 rear left lower control arm with ball joint for the 2005-2012 Nissan Pathfinder and other vehicles links the wheel to the chassis. This Dorman suspension control arm and ball joint assembly replaces the original assembly.
- Evaluation process aimed at a smooth ride, directional stability and predictable dynamics
- Ball joint and rubber bushings included with the boxed steel control arm
- Additional coatings resist rust and corrosion
Quick facts
- Part: Dorman 522-007 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2005-2012 Nissan Pathfinder and other vehicles
- Position: Rear left lower forward
- Material: Steel control arm with rubber bushings
- Condition: New
A clunk or knock from the rear suspension over bumps, or uneven tire wear, can mean a worn control arm or ball joint. A worn shock or wheel bearing can give similar signs, so find the cause before buying. This Dorman lower control arm is one rear left arm; the rear right is separate, and both sides are normally replaced together.
Fits
The vehicles it fits include the 2005-2012 Nissan Pathfinder, the 2005-2015 Nissan Armada and the 2004-2010 Infiniti QX56, and each takes one for the rear left. Driving something else? Look up your year and model under the "Vehicles it fits" section.
Specifications
Fit and size
- Position: rear left lower forward
- Quantity per vehicle: 1
- Mounting hole diameter: 12.3 mm
- Ball joint thread diameter: 14.5 mm
- Maximum width: 288.5 mm
- Maximum length: 237 mm
Build and materials
- Control arm type: boxed
- Material: steel control arm, rubber bushings
- Ball joint stud type: pinch
- Pre-greased: yes
- Condition: New
- Country of origin: China
In the box
One control arm with ball joint, bushings and mounting hardware. A grease fitting is not included.
Interchange: TC6106 · CA12629 · 9CB30323 · RK642561 · GS301102 · CMS301102 · 2607300 · 551A1EA500 · 551A1ZQ00A · SK522007
This part cross-references / interchanges with the following part numbers:
TC6106, CA12629, 9CB30323, RK642561, GS301102, CMS301102, 2607300, 551A1EA500, 551A1ZQ00A, SK522007
Frequently Asked Questions
Is this the right Nissan Pathfinder control arm for a 2005-2012 Nissan Pathfinder?
Yes. Dorman 522-007 fits the 2005-2012 Nissan Pathfinder as the rear left lower forward arm, one for that side. For another car, look it up under the "Vehicles it fits" section.
Are Dorman control arm bushings included with this arm?
Yes. Dorman 522-007 comes with its ball joint, rubber bushings and mounting hardware. A grease fitting is not included.
Is this Dorman control arm made of steel?
Yes. The control arm is boxed steel with rubber bushings, and additional coatings resist rust and corrosion.
How can I tell if the ball joint on a rear left control arm is worn?
A clunk over bumps or uneven tire wear can point to a worn ball joint or bushing, and cracked or torn rubber shows on a visual check. A shop can test the joint for play.
What size is the ball joint thread on Dorman 522-007?
The ball joint on this arm has a 14.5 mm thread diameter and a pinch-type stud. The arm's mounting hole is 12.3 mm.
