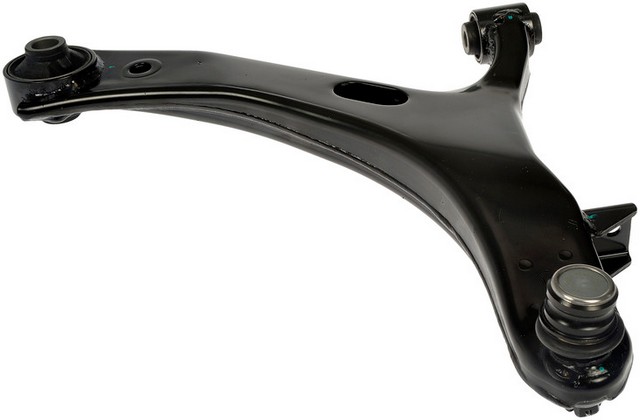

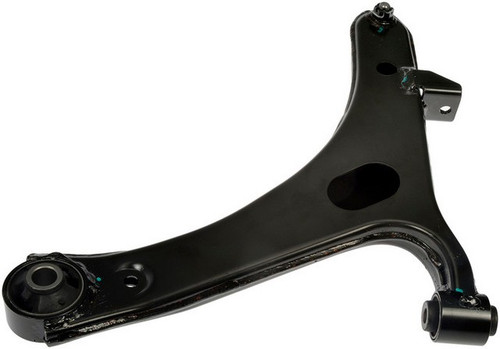

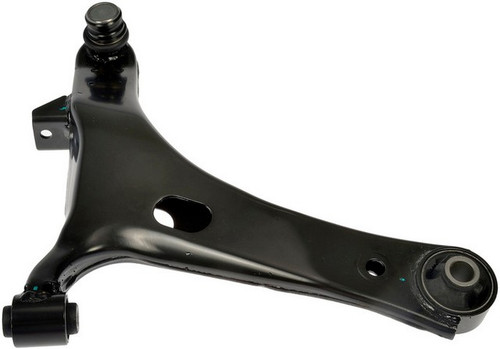

Dorman 522-236 front right lower control arm with ball joint for the 2005-2009 Subaru Outback and other vehicles connects the front right wheel to the chassis. It is tested for a smooth ride, directional stability and predictable dynamics.
- Stamped steel control arm with rubber bushings
- Ball joint and bushings come pre-installed, saving time and labor
- Additional coatings resist rust and corrosion
- Threaded ball joint stud with a 14 mm thread diameter
- Pre-greased assembly; grease fitting not included
- Part of the Dorman OE Solutions line
Quick facts
- Part: Dorman 522-236 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2005-2009 Subaru Outback and other vehicles
- Position: Front right lower
- Material: Steel (control arm), rubber (bushings)
- Condition: New
A worn arm, bushing or ball joint can show up as a clunk over bumps, loose steering or uneven tire wear, though a worn tie rod end or strut mount can produce similar signs, so find the cause before you replace anything.
Fits
As a Dorman suspension control arm and ball joint assembly, it is a direct replacement for the original equipment on the 2005-2009 Subaru Legacy and the 2005-2009 Subaru Outback. The front axle takes one arm on each side; this listing is the right one, and the left is ordered separately and normally replaced at the same time.
Specifications
Fit and size
- Position: front right lower
- Quantity: one per side of the front axle
- Maximum length: 237 mm
- Maximum width: 288.5 mm
- Mounting hole diameter: 12.5 mm
- Ball joint thread diameter: 14 mm
Build and materials
- Control arm type: stamped
- Control arm material: steel
- Bushing material: rubber
- Ball joint stud: threaded
- Grade: standard replacement
- Condition: new
- Country of origin: Turkey
In the box
One control arm with the ball joint and bushings installed, plus mounting hardware. A grease fitting is not included.
Interchange: TC5332 · CA14659 · 5CB801134 · RK622030 · GS80181 · CMS80181 · 2606948 · 2606948M · 20202AG02C · 20202AG02D · 20202AG02E · X47CJ0665
This part cross-references / interchanges with the following part numbers:
TC5332, CA14659, 5CB801134, RK622030, GS80181, CMS80181, 2606948, 2606948M, 20202AG02C, 20202AG02D, 20202AG02E, X47CJ0665
Frequently Asked Questions
Does this Subaru Outback control arm fit both sides of a 2005-2009 Subaru Outback?
No. Dorman 522-236 is the front right lower arm for the 2005-2009 Subaru Outback, and the left side takes a separate arm.
Are the control arm bushings for the 2005-2009 Subaru Outback already installed?
Yes. The rubber bushings and the ball joint come pre-installed on the arm, and mounting hardware is included.
What size is the ball joint stud on this Dorman control arm?
The stud is threaded, with a 14 mm thread diameter. The arm's mounting hole measures 12.5 mm.
How can I tell if a Dorman lower control arm is worn out?
A clunk over bumps, loose steering feel or uneven tire wear can mean a worn arm, bushing or ball joint. Torn bushing rubber is another sign; a shop can measure play safely.
Does Dorman 522-236 replace the number 20202AG02C?
Yes. 20202AG02C is one of the numbers on this page's Interchange line for Dorman 522-236, along with 20202AG02D and 20202AG02E.
