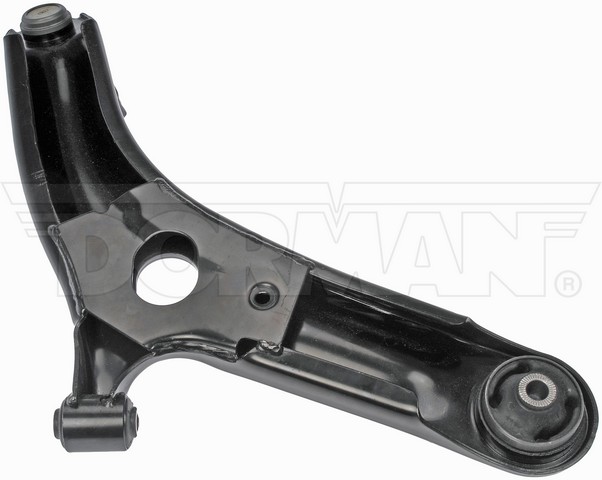

Dorman 522-237 front left lower control arm with ball joint for the 2010-2013 Kia Soul connects the front left wheel to the body while the suspension moves. This Dorman control arm replaces the arm, ball joint and bushings as one piece.
- Part of the Dorman OE Solutions line
- Ball joint and rubber bushings come pre-installed to save time and labor
- Stamped steel control arm with additional coatings that resist rust and corrosion
- Pre-greased assembly with a pinch-type ball joint stud
- Tested for a smooth, stable ride and directional stability
Quick facts
- Part: Dorman 522-237 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2010-2013 Kia Soul
- Position: front left lower
- Material: steel control arm, rubber bushings
- Condition: New
A worn control arm can show up as a clunk over bumps, uneven tire wear or steering that wanders. These signs alone do not prove this arm is at fault, since a worn sway bar link can make a similar noise.
Fits
As a 2010-2013 Kia Soul control arm, it is a direct replacement for the original equipment on this vehicle. This listing is one arm for the front left; the front right is a separate part, and both sides are normally replaced together.
Specifications
Fit and size
- Position: front left lower
- Quantity for the front left position: 1
- Mounting hole diameter: 12.3 mm, 1 hole
- Maximum width: 288.5 mm
- Maximum length: 237 mm
- Ball joint thread diameter: 14 mm
Build and materials
- Control arm type: stamped
- Control arm material: steel
- Bushing material: rubber
- Ball joint stud type: pinch
- Condition: new
- Country of origin: Thailand
In the box
One control arm with the ball joint and bushings pre-installed, plus mounting hardware. A grease fitting is not included. The front left side of the 2010-2013 Kia Soul takes one.
Interchange: 102-6081 · 622.50026 · 623.50026
TC3595 · CA14639 · 5CB90244 · 545002K200 · 545002K500 · RK642260 · GS901106 · CMS901106 · 2608024 · 2608024M
This part cross-references / interchanges with the following part numbers:
102-6081, 622.50026, 623.50026, TC3595, CA14639, 5CB90244, 545002K200, 545002K500, RK642260, GS901106, CMS901106, 2608024, 2608024M
Frequently Asked Questions
Is Dorman 522-237 the right front left lower control arm for the 2010-2013 Kia Soul?
Yes. Dorman 522-237 is a front left lower control arm for the 2010-2013 Kia Soul, and this listing covers the left side only.
Do the Dorman control arm bushings come installed?
Yes. The rubber bushings come pre-installed on the Dorman 522-237 arm, along with the ball joint.
Is the Dorman suspension control arm and ball joint assembly pre-greased?
Yes. The assembly is pre-greased. A grease fitting is not included, and the pinch-type ball joint stud has a 14 mm thread diameter.
Is the Dorman lower control arm adjustable?
No. Dorman 522-237 is a standard-replacement arm and is not adjustable.
What size is the mounting hole on this control arm?
The mounting hole is 12.3 mm in diameter. The arm measures 288.5 mm at its widest point and 237 mm at its longest.
