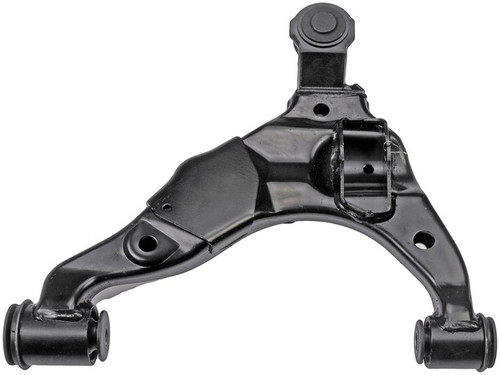

Dorman 522-719 front left lower control arm with ball joint for the 2005-2015 Toyota Tacoma links the front left wheel to the frame. This Dorman suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications.
- Part of the Dorman OE Solutions line
- Evaluated for a smooth ride, directional stability and predictable dynamics
- Ball joint and rubber bushings come pre-installed, and the ball joint is pre-greased
- Additional coatings resist rust and corrosion
Quick facts
- Part: Dorman 522-719 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2005-2015 Toyota Tacoma
- Position: Front left lower
- Material: Steel (control arm), rubber (bushings)
- Condition: New
A worn ball joint or worn bushings can show up as a clunk over bumps, loose or wandering steering, or uneven tire wear. Worn tie rod ends, sway bar links, struts or a wheel bearing can produce similar signs, so find the cause before you buy a control arm.
Fits
This Dorman control arm fits the 2005-2015 Toyota Tacoma, which takes one on the front left. Replace the left and right lower arms as a pair; this listing is one arm, and the front right is a separate part.
Specifications
Fit and size
- Position: front left lower
- Quantity per vehicle: 1
- Mounting hole diameter: 12.3 mm
- Maximum width: 288.5 mm
- Maximum length: 237 mm
- Ball joint thread diameter: 14 mm
Build and materials
- Control arm type: boxed
- Control arm material: steel
- Bushing material: rubber
- Ball joint stud: threaded
- Grade: standard replacement
- Condition: new
- Country of origin: Taiwan
In the box
One control arm with ball joint and mounting hardware. A grease fitting is not included.
Interchange: 102-6431 · 810-84779B · 623.44064
TC5789 · CA14635 · 9CB86338 · 9CB86338N · CK623262 · RK623262 · FA3703 · GS861038 · CMS861038 · 2606703 · SK522719 · 1525057 · X50CJ0517 · JTC2523 · 4806904040
This part cross-references / interchanges with the following part numbers:
102-6431, 810-84779B, 623.44064, TC5789, CA14635, 9CB86338, 9CB86338N, CK623262, RK623262, FA3703, GS861038, CMS861038, 2606703, SK522719, 1525057, X50CJ0517, JTC2523, 4806904040
Frequently Asked Questions
Is Dorman 522-719 the front left lower A arm for the 2005-2015 Toyota Tacoma?
Yes. Dorman 522-719 is the front left lower control arm with ball joint for the 2005-2015 Toyota Tacoma. The front right side is a separate part.
Does this control arm come with the ball joint and bushings already installed?
Yes. The ball joint and rubber bushings are pre-installed, the ball joint is pre-greased, and mounting hardware is included. A grease fitting is not included.
What thread size is the ball joint stud on this Dorman suspension control arm?
Dorman 522-719 has a threaded ball joint stud with a 14 mm thread diameter. Its mounting hole measures 12.3 mm.
How can I tell if a lower control arm is worn?
A clunk over bumps, steering that wanders or uneven tire wear can point to wear. A shop can check ball joint play and bushing condition with the vehicle safely raised.
What is this Dorman 522-719 control arm made of?
The boxed control arm is steel with rubber bushings. Additional coatings resist rust and corrosion.
