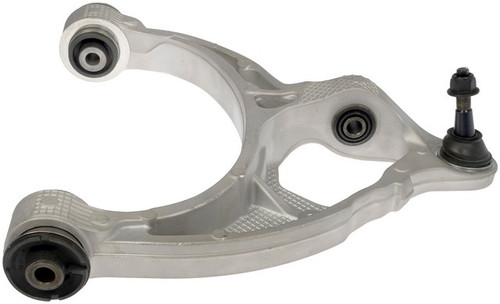

Dorman 527-451 front left lower control arm with ball joint for the 2019-2025 Ram 1500 and other vehicles is a suspension control arm and ball joint assembly that connects the front left wheel to the chassis.
- Part of the Dorman OE Solutions line
- Ball joint and bushings pre-installed in the control arm
- Aluminum control arm with casting/forged construction
- Rubber and aluminum bushings
- Additional coatings for rust and corrosion resistance
- Pre-greased ball joint with a threaded stud
Quick facts
- Part: Dorman 527-451 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2019-2025 Ram 1500 and other vehicles
- Position: Front left lower
- Material: Aluminum
- Condition: New
A worn control arm or ball joint can show up as a clunk over bumps, uneven tire wear or loose, wandering steering. Other suspension parts can produce those signs too, so with the engine off, look at the bushings for cracked rubber and the ball joint for a split boot first. If this front left arm is the cause, this assembly replaces it.
Fits
The 2019-2025 Ram 1500, the 2022-2025 Jeep Grand Wagoneer and the 2023-2025 Jeep Grand Wagoneer L take this direct replacement for the original equipment, as do other vehicles. If your vehicle is not named here, look up its year and model in the "Vehicles it fits" section. Both front lower arms are normally replaced together; this listing is one front left arm, which the 2019-2025 Ram 1500 takes once, and the front right is a separate part.
Specifications
Fit and size
- Position: front left lower
- Quantity per vehicle: 1 (front left)
- Mounting holes: 3, with diameters of 18.2 mm and 16.2 mm
- Bushing inside diameter: 18.2 mm and 16.2 mm
- Bushing length: 95 mm and 70 mm
- Distance between bushings: 519 mm
- Control arm maximum width: 519 mm
- Control arm maximum length: 427.5 mm
- Ball joint stud length: 45.5 mm
- Ball joint thread diameter: 16 mm
Build and materials
- Control arm material: aluminum
- Construction: casting/forged
- Bushing material: rubber and aluminum
- Ball joint: installed, press-in mounting, threaded stud, pre-greased, not greaseable
- Grade: standard replacement
- Condition: new
- Country of origin: China
In the box
One control arm with its ball joint installed, and one nut. Mounting hardware is included; a grease fitting is not.
Interchange: 68261621AA · 68261621AB · 68261621AC · 68261621AD · 68261621AE · 68401457AB · 68401457AC · CA14898 · RK623918 · GS251269 · CMS251269 · CTXMS251269 · 2608733 · 11CB252265
This part cross-references / interchanges with the following part numbers:
68261621AA, 68261621AB, 68261621AC, 68261621AD, 68261621AE, 68401457AB, 68401457AC, CA14898, RK623918, GS251269, CMS251269, CTXMS251269, 2608733, 11CB252265
Frequently Asked Questions
Will Dorman 527-451 work as a Ram 1500 lower control arm on the 2019-2025 Ram 1500?
Yes. Dorman 527-451 is the front left lower control arm with ball joint for the 2019-2025 Ram 1500, and that truck takes one on this side.
Can I use this Ram 1500 control arm on the front right of a 2019-2025 Ram 1500?
No. This one is the front left lower arm. The front right is a separate part and has to be ordered on its own.
Does the Dorman 527-451 control arm come with the ball joint and hardware?
Yes. Dorman 527-451 comes with the ball joint installed in the arm, one nut and mounting hardware. A grease fitting is not included.
Is the ball joint on this control arm greaseable?
No. The ball joint comes pre-greased and is not greaseable, and the arm has no grease fitting.
Can the rubber bushings in a lower control arm wear out and cause clunking over bumps?
Yes. Worn bushings or a worn ball joint can cause clunks over bumps, loose steering or uneven tire wear. A shop can check suspension play safely, so have it looked at promptly.
