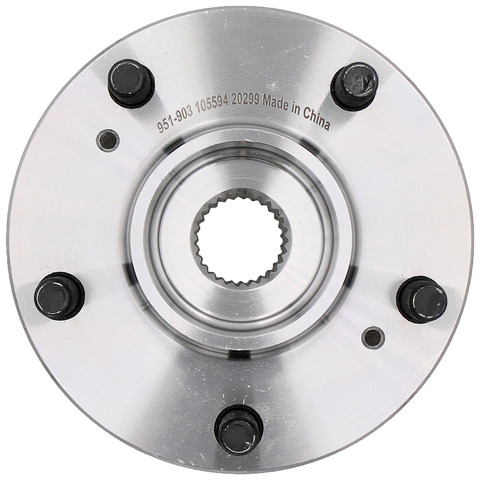

Dorman 951-903 rear wheel bearing and hub assembly for the 2006-2012 Mitsubishi Eclipse and other vehicles mounts the rear wheel and lets it turn on its bearing. The hub and bearing install as a single unit instead of separate parts.
- Part of the Dorman OE Solutions line
- Hub with application-specific bearing components included for a complete repair
- Replaces the hub and bearing together, so there are no individual corroded components to remove
- Five wheel studs and the flange come on the hub
- Engineered and tested in the United States
Quick facts
- Part: Dorman 951-903 wheel bearing and hub assembly
- Fits: 2006-2012 Mitsubishi Eclipse and other vehicles
- Position: Rear
- Material: Steel
- Condition: New
A worn bearing can show up as a humming or growling noise that changes with speed, or as looseness at the wheel. Before you replace the wheel bearing and hub assembly, rule out worn tires and brake trouble, which can make similar noise and vibration. Plan to replace the rear pair together; this listing is one wheel bearing and hub assembly, and the 2006-2012 Mitsubishi Eclipse takes one.
Fits
It fits the 2006-2012 Mitsubishi Eclipse, the 2004-2012 Mitsubishi Galant and the 2004-2011 Mitsubishi Endeavor. Its dimensions are engineered to match original equipment.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 1
- Flange diameter: 141.8 mm
- Bolt circle diameter: 114.3 mm
- Wheel pilot diameter: 67 mm
- Hub pilot diameter: 87 mm
- Brake pilot diameter: 69 mm
- Flange offset: 40.5 mm
- Wheel stud size: M12 X 1.5
- Spline count: 27
- Flange bolt holes: 4
Build and materials
- Material: Steel
- Wheel studs: 5 included
- ABS sensor: not included
- Condition: New
- Country of origin: Malaysia
In the box
One wheel bearing and hub assembly with its flange and five wheel studs. Flange bolts are not included, so plan on new ones.
Interchange: WE60425 · 513219 · 3885A016 · PT513219 · HA590108
This part cross-references / interchanges with the following part numbers:
WE60425, 513219, 3885A016, PT513219, HA590108
Frequently Asked Questions
Is this the rear wheel bearing for the 2004-2012 Mitsubishi Galant?
Yes. Dorman 951-903 is a rear wheel bearing and hub assembly listed for the 2004-2012 Mitsubishi Galant, and it is sold as one assembly.
Does this Dorman wheel hub come with the wheel studs?
Yes. The package is one wheel bearing and hub assembly with its flange and five wheel studs. Flange bolts are not included.
What are the bolt circle and pilot sizes on this rear wheel bearing and hub assembly?
Dorman 951-903 has a 114.3 mm bolt circle, M12 X 1.5 wheel studs, a 67 mm wheel pilot, an 87 mm hub pilot and a 69 mm brake pilot.
Does a worn wheel bearing hum, and can I keep driving on it?
A humming or growling noise that changes with speed can mean a worn bearing. Don't keep driving on it; have the wheel checked and the assembly replaced promptly.
Does the Dorman 951-903 wheel bearing and hub assembly come with an ABS sensor?
No. The ABS sensor is not included with Dorman 951-903, so it is a separate item if your car uses one.
