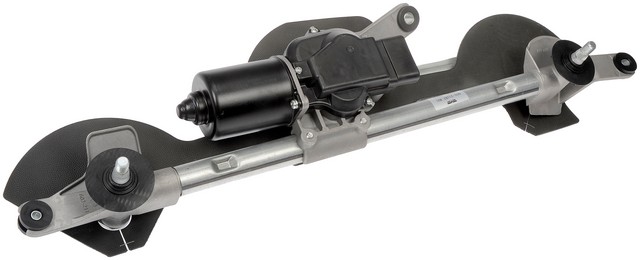

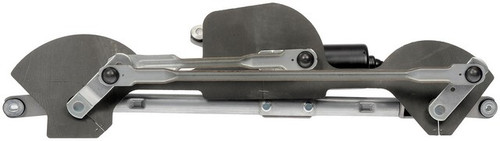

Dorman 602-211AS windshield wiper motor and linkage assembly for the 2010-2017 Chevrolet Equinox and other vehicles replaces the wiper motor and its transmission as one unit. This OE FIX design holds tighter manufacturing tolerances to reduce freeplay between the internal worm and spur gears.
- Special stop block inside the motor casing limits drive shaft travel
- Wiper motor and the transmission with linkage come together as one unit
- Galvanized steel frame with a rubber bushing
- Part of the Dorman OE Solutions line
- Updated motor design with stricter specifications
Quick facts
- Part: Dorman 602-211AS windshield wiper motor and linkage assembly
- Fits: 2010-2017 Chevrolet Equinox and other vehicles
- Material: Galvanized steel
- Condition: New
On some General Motors SUVs the original motor can fail early, because excessive freeplay stresses the teeth on the plastic spur gears and can grow until it damages the motor's copper windings. This assembly is designed for a longer service life than the original equipment. Wipers that stop, park in odd spots or move slowly can come from this motor, but a wiper arm, a blown fuse or the wiring can be behind them too, so find the cause before buying.
Fits
This is a direct-fit replacement for the 2010-2017 Chevrolet Equinox and the 2010-2017 GMC Terrain, and both take a single assembly.
Specifications
Fit and size
- Quantity per vehicle: 1
- Length: 25 in
- Wiper arm pivot point diameter: 0.485 in
- Attachment method: bolt on
- Rotation direction: clockwise (right)
Build and materials
- Frame material: galvanized steel
- Bushing material: rubber
- Configuration: one piece
- Driver type: mechanical
- Condition: new
- Country of origin: China
In the box
One wiper motor and one wiper transmission. Mounting hardware is not included, so plan on new fasteners rather than reusing the old ones.
Interchange: 25942547 · 84241847
Frequently Asked Questions
Is Dorman 602-211AS a Chevy Equinox windshield wiper motor for model years 2010-2017?
Yes. Dorman 602-211AS is a direct-fit replacement for the 2010-2017 Chevrolet Equinox, and the vehicle takes one assembly.
Will this GMC Terrain windshield wiper motor fit a 2010-2017 Terrain?
Yes. This windshield wiper motor and linkage assembly fits the 2010-2017 GMC Terrain, which takes a single assembly.
What does this Dorman windshield wiper motor and linkage assembly include?
Dorman 602-211AS includes one wiper motor and one wiper transmission. Mounting hardware is not included.
How does the OE FIX design deal with wiper motor freeplay?
Tighter manufacturing tolerances and a special stop block inside the motor casing limit shaft travel. That reduces freeplay between the internal worm and spur gears.
What are the frame and bushing of this wiper motor assembly made of?
The frame is galvanized steel and the bushing is rubber. The assembly is one piece with a mechanical driver and a bolt-on attachment.
