Rear Brake Rotor for 2020-2026 Land Rover Defender 110 & More - Dynamic Friction 900-11023

$111.99
Dynamic Friction Company Disc Brake Rotor 900-11023
Dynamic Friction Company Disc Brake Rotor 900-11023

Vehicles this part fits
    Part number: 900-11023
    UPC: 190920049644
    Condition: New
    Weight: 25.00 LBS
    Item Package Quantity: 1
    $111.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

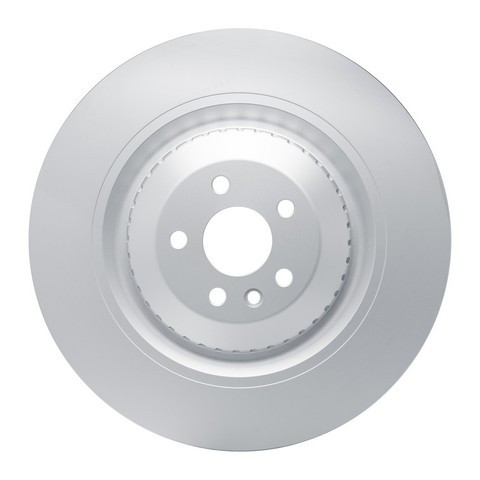

    Dynamic Friction Company Disc Brake Rotor P/N:900-11023
    Dynamic Friction Company Disc Brake Rotor P/N:900-11023
    $111.99
    $111.99

    Dynamic Friction 900-11023 rear brake rotor for the 2020-2026 Land Rover Defender 110 and other vehicles gives the brake pads a vented disc to clamp against. As a disc brake rotor, it provides the surface the pads grip to slow the vehicle.

    • 100% precision mill-balanced for smoother stopping and zero vibration at any speed
    • G3000/G11H18 iron castings for strength, stability and durability
    • Fine turned finish (16 RMS) for improved initial rotor and pad break-in
    • Geomet coating for high-performance corrosion protection
    • Vane configuration for proper and maximum heat dissipation

    Quick facts

    • Part: Dynamic Friction 900-11023 brake rotor
    • Also called: disc brake rotor
    • Fits: 2020-2026 Land Rover Defender 110 and other vehicles
    • Position: Rear
    • Material: G3000/G11H18 iron castings
    • Condition: New

    Pulsation through the brake pedal or a grinding noise when braking can mean a rotor is worn, though the pads or a caliper may be behind the same signs. At a brake service with the wheel off, look over the rotor face for grooves and cracks and measure its thickness against the 22 mm discard thickness before deciding.

    Fits

    The 2020-2026 Land Rover Defender 110, the 2023-2026 Land Rover Defender 130 and the 2021-2026 Land Rover Defender 90 all take this rotor, along with more Land Rover models, at two rear rotors per vehicle. This listing is one rotor, and both rear rotors are normally replaced together.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 2
    • Outside diameter: 365 mm
    • Center hole (inside) diameter: 79 mm
    • Bolt circle: 120 mm, 5 lug holes
    • Lug hole diameter: 14.5 mm
    • Overall height: 49 mm
    • Nominal thickness: 25 mm
    • Discard thickness: 22 mm

    Build and materials

    • Type: Vented
    • Surface: Smooth, non-directional
    • Disc and hat finish: Fully coated GEOMET
    • Disc thickness variation (DTV): 010 MM maximum
    • Lateral runout: 050 MM maximum
    • Condition: New

    Frequently Asked Questions

    Does the Dynamic Friction 900-11023 rear rotor fit a 2021-2026 Land Rover Defender 90?

    Yes. Dynamic Friction 900-11023 is a rear rotor listed for the 2021-2026 Land Rover Defender 90. For another Land Rover, look up your own car in the "Vehicles it fits" section.

    What size is this rear rotor, and is it vented?

    The Dynamic Friction 900-11023 is vented, with a 365 mm outside diameter, a 79 mm center hole and 5 lug holes on a 120 mm bolt circle.

    At what thickness should these rotors be replaced?

    The discard thickness is 22 mm, against a nominal thickness of 25 mm. A rotor that measures 22 mm or less has reached its wear limit.

    Is this Dynamic Friction brake rotor directional?

    No. This rotor has a smooth, non-directional brake surface.

    What protects this rotor from rust?

    The disc and hat are fully coated with Geomet for corrosion protection. The rotor also has a fine turned finish (16 RMS) for pad break-in.
