Front Brake Rotor for 2017-2021 Jaguar F-Type & More - Dynamic Friction 900-20020

$125.99
Dynamic Friction Company Disc Brake Rotor 900-20020
Dynamic Friction Company Disc Brake Rotor 900-20020

Vehicles this part fits
    Part number: 900-20020
    UPC: 190920050084
    Condition: New
    Weight: 26.60 LBS
    Item Package Quantity: 1
    $125.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Dynamic Friction Company Disc Brake Rotor P/N:900-20020
    Dynamic Friction Company Disc Brake Rotor P/N:900-20020
    $125.99
    $125.99

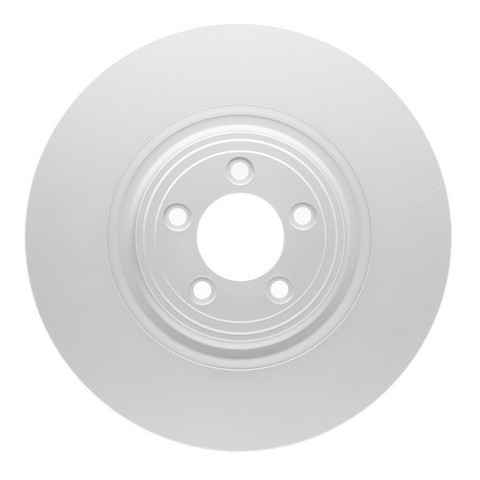

    Dynamic Friction 900-20020 front brake rotor for the 2017-2021 Jaguar F-Type and other vehicles is the vented disc the brake pads clamp to slow the wheel. Also called a disc brake rotor, it turns with the wheel while the pads squeeze it.

    • 100% precision mill-balanced for smoother stopping and zero vibration at any speed
    • Disc thickness variation (DTV) of 010 MM maximum and lateral runout of 050 MM maximum
    • G3000/G11H18 iron castings for strength, stability and durability
    • Fine turned finish (16 RMS) for improved initial rotor and pad break-in
    • Geomet coated for high-performance corrosion protection
    • Vane configuration for maximum heat dissipation

    Quick facts

    • Part: Dynamic Friction 900-20020 brake rotor
    • Also called: disc brake rotor
    • Fits: 2017-2021 Jaguar F-Type and other vehicles
    • Position: Front
    • Condition: New

    A pulsing brake pedal, a shake in the steering wheel while braking or deep grooves in the rotor face can mean the rotor is worn. These signs alone do not prove the rotor is the problem, because a sticking caliper can produce them too. One rotor goes on each side of the front axle, and this listing is a single rotor, so order two and fit them together.

    Fits

    It is listed for a wide range of Jaguar models, including the 2017-2021 Jaguar F-Type, the 2010-2019 Jaguar XJ and the 2009-2015 Jaguar XF.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Outside diameter: 355 mm
    • Inside and center hole diameter: 71 mm
    • Overall height: 48.4 mm
    • Nominal thickness: 32 mm
    • Discard thickness: 30 mm
    • Bolt circle: 108 mm, 5 lug holes
    • Lug hole diameter: 14 mm

    Build and materials

    • Type: Vented
    • Surface: Smooth, non-directional
    • Disc and hat finish: Fully coated Geomet
    • Rust resistant coating: Yes
    • Condition: New

    Frequently Asked Questions

    Are these Jaguar XF brake rotors correct for the 2009-2015 Jaguar XF?

    Yes. Dynamic Friction 900-20020 is a front rotor listed for the 2009-2015 Jaguar XF, and the car takes two. If your Jaguar is a different model, look it up in the "Vehicles it fits" section.

    What are the nominal and discard thicknesses of the 900-20020 rotor?

    Dynamic Friction 900-20020 has a nominal thickness of 32 mm and a discard thickness of 30 mm. A rotor measured at 30 mm or less during a brake service is due for replacement.

    Is this Dynamic Friction brake rotor vented or solid?

    It is vented, with a vane configuration for heat dissipation. The outside diameter is 355 mm, and it has five lug holes on a 108 mm bolt circle.

    Is the hat of this rotor coated with Geomet?

    Yes, the disc and the hat are both fully coated with Geomet, which gives the rotor high-performance corrosion protection.

    What does the fine turned finish on this rotor do?

    The 16 RMS fine turned finish is intended to improve the initial break-in of the rotor and the brake pads.
