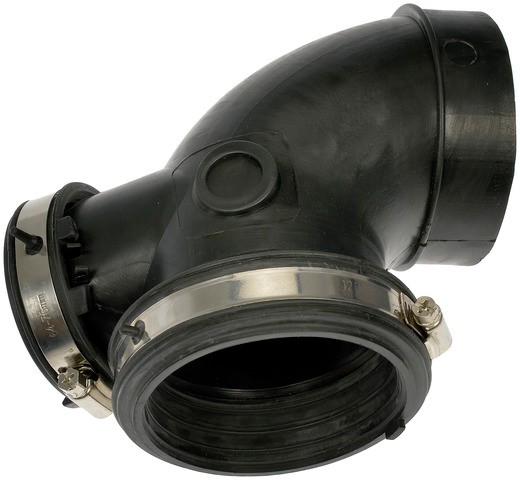

Dorman 696-406 air intake hose for the 2003-2005 Chevrolet Express 2500 V8 5.3L, the 2003-2017 Express 2500 V8 4.8L, the 2003-2020 Express 2500 V8 6.0L and other vehicles carries intake air from the mass air flow (MAF) sensor to the connector. It is a direct replacement for the original equipment intake hose and has been tested for proper fit and performance.
- Molded one-piece rubber construction for a long service life
- Inside diameter of 54 mm at one end and 88 mm at the other
- No emissions sensor port on the hose
- Part of the Dorman OE Solutions line
Quick facts
- Part: Dorman 696-406 air intake hose
- Also called: engine air intake hose
- Fits: 2003-2005 Chevrolet Express 2500 V8 5.3L, the 2003-2017 Express 2500 V8 4.8L, the 2003-2020 Express 2500 V8 6.0L and other vehicles
- Position: Mass air flow (MAF) sensor to connector
- Material: Rubber
- Condition: New
A cracked, split or softened hose can let unmetered air into the intake after the MAF sensor, which can show up as a rough idle or a check engine light. Those signs can have other causes, so look for the cause first: with the engine off and cool, go over the hose for cracks, splits and soft spots, and leave running leak tests to a shop.
Fits
It also fits the 2003-2008 Chevrolet Express 3500 V8 5.3L, the 2003-2017 Express 3500 V8 4.8L, the 2003-2020 Express 3500 V8 6.0L, the 2003-2005 GMC Savana 2500 V8 5.3L, the 2003-2017 Savana 2500 V8 4.8L and the 2003-2020 Savana 2500 V8 6.0L. Each engine's intake run takes one hose. Don't see your vehicle named here? Look up your own year, model and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: mass air flow (MAF) sensor to connector
- Quantity per vehicle: 1
- Length: 6.909 in
- Inside diameter: 54 mm at end 1, 88 mm at end 2
- Outside diameter: 93 mm
Build and materials
- Construction: molded, one piece
- Material: rubber
- Emissions sensor port: not equipped
- Condition: New
- Country of origin: China
In the box
One air intake hose and two clamps.
Interchange: 23303033
Frequently Asked Questions
Will the Dorman 696-406 air intake hose fit a 2003-2020 Chevrolet Express 3500 V8 6.0L?
Yes. Dorman 696-406 is listed for the 2003-2020 Chevrolet Express 3500 V8 6.0L, where it runs from the MAF sensor to the connector.
Does the Dorman intake hose come with clamps?
Yes. Dorman 696-406 comes with one air intake hose and two clamps.
What are the end sizes on this air intake hose?
The inside diameter is 54 mm at one end and 88 mm at the other. The outside diameter is 93 mm and the length is 6.909 in.
How can I tell if my engine air intake hose is cracked?
With the engine off and cool, look along the hose for cracks, splits, soft spots or oily rubber. A shop can test for leaks with the engine running.
Does this air intake hose have an emissions sensor port?
No. This molded one-piece rubber hose is not equipped with an emissions sensor port.
