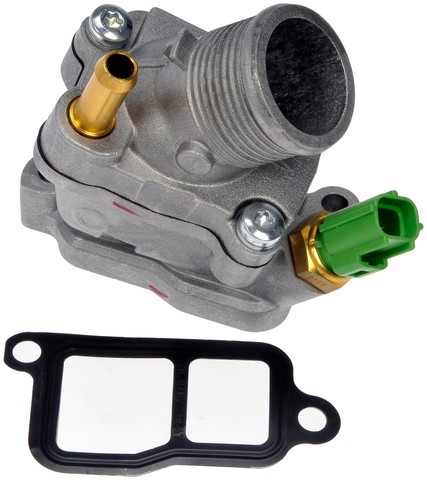

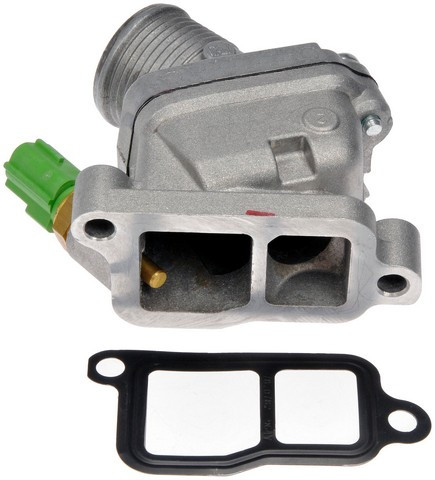

Dorman 902-5152 engine coolant thermostat housing assembly for the 2002-2003 Volvo S60 5-cylinder 2.4L, the 2002-2004 S60 5-cylinder 2.3L, the 2003-2009 S60 5-cylinder 2.5L, the 2005-2009 S60 5-cylinder 2.4L and other vehicles holds the thermostat that regulates engine coolant flow. The Dorman engine coolant thermostat housing directly replaces the original housing on the vehicles it fits.
- Metal housing designed to withstand extreme temperature changes to extend service life
- Housing designed to resist cracking and leaking
- Thermostat opens at 194 Deg. F.
- Gasket included for the housing joint
- Dorman OE Solutions line, Standard Replacement grade
Quick facts
- Part: Dorman 902-5152 engine coolant thermostat housing assembly
- Fits: the 2002-2003 Volvo S60 5-cylinder 2.4L, the 2002-2004 S60 5-cylinder 2.3L, the 2003-2009 S60 5-cylinder 2.5L, the 2005-2009 S60 5-cylinder 2.4L and other vehicles
- Material: Metal
- Condition: New
A coolant leak near the housing, visible cracks or an engine that runs hot can mean the housing has failed. These signs alone do not prove it, though; a worn heater hose is another common source of a leak. One housing goes on each engine.
Fits
The 2002-2003 Volvo V70 5-cylinder 2.4L, the 2002-2004 V70 5-cylinder 2.3L, the 2004-2007 V70 5-cylinder 2.5L, the 2005 V70 5-cylinder 2.4L and the 2002-2004 Volvo C70 5-cylinder 2.3L or 2.4L take this Dorman engine coolant thermostat housing assembly as well, along with many other Volvo models. If your Volvo is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per application: 1
- Mounting holes: 2
- Flange thickness: 0.38 in
- Flange length: 3.75 in
- Flange width: 1.8 in
Build and materials
- Material: Metal
- Thermostat opening temperature: 194 Deg. F.
- Grade: Standard replacement
- Bleeder hole: No
- Condition: New
- Country of origin: Italy
In the box
One thermostat housing, one thermostat, one gasket and one sensor. Mounting hardware is not included, and the old bolts may not be reusable, so plan on new ones.
Interchange: 143-0851 · 143-0865 · 909-194
90994 · 86162 · 34796 · SK9025152 · 15369 · 31293698 · 31293700
This part cross-references / interchanges with the following part numbers:
143-0851, 143-0865, 90994, 86162, 34796, 909-194, SK9025152, 15369, 31293698, 31293700
Frequently Asked Questions
Will Dorman 902-5152 fit a 2003-2009 Volvo S60 5-cylinder 2.5L?
Yes. Dorman 902-5152 is listed for the 2003-2009 Volvo S60 5-cylinder 2.5L. For another Volvo, look up its year and engine in the "Vehicles it fits" section.
Does the Dorman OE Solutions engine coolant thermostat housing assembly come with a thermostat?
Yes. Dorman 902-5152 comes with the housing, a thermostat, a gasket and a sensor.
What temperature does the thermostat in this housing open at?
The thermostat supplied with this housing opens at 194 Deg. F.
How can I tell if a coolant leak is coming from a cracked thermostat housing?
With the engine cool, look at the housing and its gasket joint for cracks or coolant residue. A shop can pressure-test the cooling system if the source is unclear.
Do I need to buy bolts separately for this thermostat housing?
Yes. Mounting hardware is not included with this housing, and the old bolts may not be reusable, so plan on new ones. The gasket is in the box.
