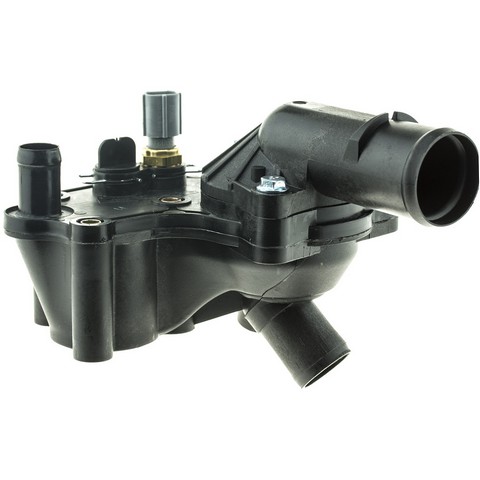

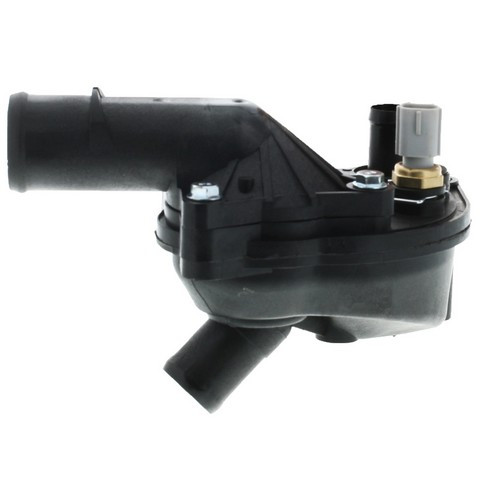

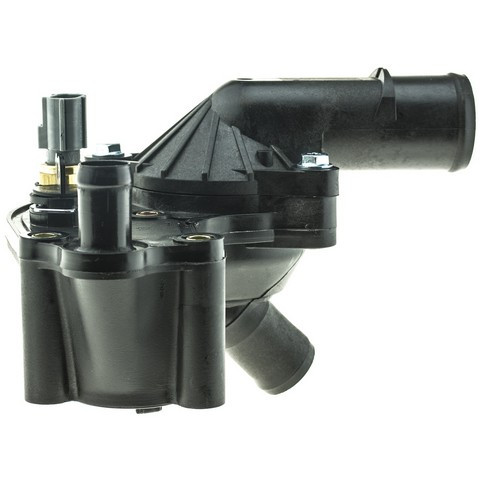

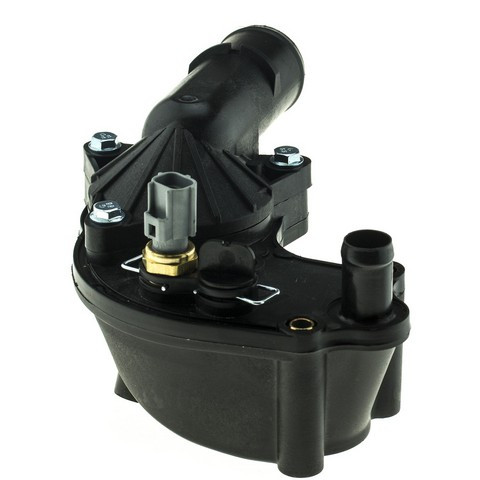

Motorad TA2210SFS engine coolant thermostat housing assembly for the 2005-2010 Ford Mustang V6 4.0L opens at a set temperature to regulate engine coolant flow. The assembly comes with a sensor and two rubber seals.
- Fail-safe thermostat housing assembly
- Copper case and wax compound respond quickly to changes in coolant temperature
- Steel, copper and plastic construction
- 100% tested and calibrated for a consistent, precise response to cooling system needs
- Disk-type valve with a mechanical actuator that starts to open at 88.89 °C
Quick facts
- Part: Motorad TA2210SFS engine coolant thermostat housing assembly
- Fits: 2005-2010 Ford Mustang V6 4.0L
- Material: copper, steel and plastic
- Condition: New
Overheating, an engine that is slow to warm up or coolant seeping around the housing can mean this assembly is worn, though a failing water pump or a leaking radiator hose can be behind those signs too, so find the cause before you replace it.
Fits
It is a direct-fit replacement for the 2005-2010 Ford Mustang V6 4.0L, made to an original equipment design.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 3, 7.11 mm (0.28 in) diameter
- Bolt hole center to center: 51.82 mm (2.04 in) and 54.36 mm (2.14 in)
- Flange: 106.68 mm (4.20 in) long, 85.34 mm (3.36 in) wide, 29.72 mm (1.17 in) thick
- Inside diameter: 18.54 mm (0.73 in)
- Inlet: outside diameter 44.96 mm (1.77 in), inside diameter 34.04 mm
- Outlet port: outside diameter 39.88 mm (1.57 in), inside diameter 36.07 mm (1.42 in), length 32.26 mm (1.27 in)
- Bypass ports: 2, outside diameters 19.30 mm and 28.45 mm, inside diameters 15.75 mm and 23.62 mm, lengths 28.70 mm and 31.50 mm
Build and materials
- Material: copper, steel and plastic
- Seals: 2, rubber
- Sensor: included
- Valve type: disk, mechanical actuator
- Start to open temperature: 88.89 °C
- Hose connections: barbed outlet and bypass ports
- Condition: New
- Country of origin: Israel
In the box
One thermostat housing assembly with a sensor and two rubber seals. This listing holds one assembly, and the 2005-2010 Ford Mustang V6 4.0L takes one. Mounting hardware is not included, and the old bolts may not be reusable, so plan on new ones.
Interchange: SFS0122AT · 9TA2210SFS
This part cross-references / interchanges with the following part numbers:
SFS0122AT, TA2210SFS, 9TA2210SFS
Frequently Asked Questions
Does the Motorad TA2210SFS thermostat housing fit the 2005-2010 Ford Mustang V6 4.0L?
Yes. The Motorad TA2210SFS is a direct-fit replacement for the 2005-2010 Ford Mustang V6 4.0L, and that Mustang takes one assembly.
Does this thermostat housing assembly come with a sensor and seals?
Yes. It includes a sensor and two rubber seals. Mounting hardware is not included.
At what temperature does the Motorad TA2210SFS thermostat start to open?
The Motorad TA2210SFS starts to open at 88.89 °C. It has a disk-type valve and a mechanical actuator.
How can I tell if my thermostat housing assembly is going bad?
Overheating or coolant residue around the housing can be signs of wear. With the engine off and cool, look for seepage at the seals; a shop can test the thermostat itself.
Is SFS0122AT the same as the Motorad TA2210SFS?
Yes. SFS0122AT is an interchange number for the Motorad TA2210SFS thermostat housing assembly, and so is 9TA2210SFS.
