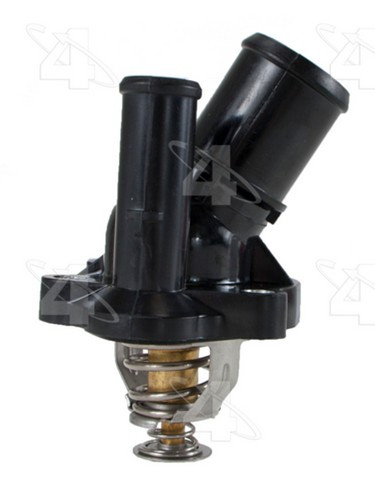

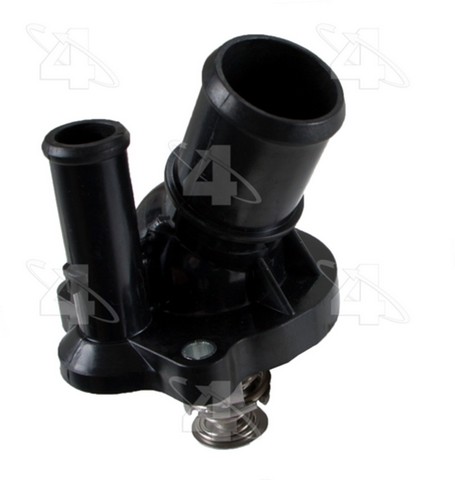

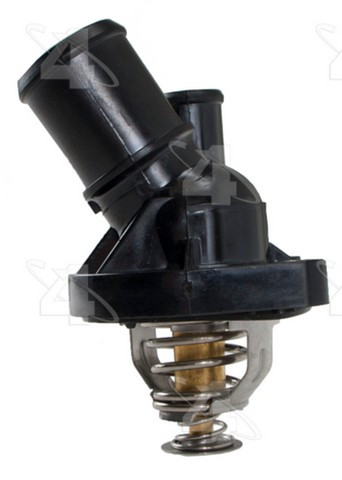

Four Seasons 86097 engine coolant thermostat housing for the 2005-2006 Ford Escape 2.3L and other vehicles is a plastic water outlet with the thermostat included, so one part replaces the housing and thermostat together.
- Engineered and tested for years of trouble-free operation, backed by over 50 years of mobile A/C experience
- 100% leak tested
- Direct-fit replacement for ease of installation
- Includes a gasket or O-ring to help seal the joint
- Meets and/or exceeds OEM standard
Coolant seeping around the housing, a temperature gauge that runs high or an engine that is slow to warm up can mean this housing or its thermostat is worn. A leaking radiator hose or a weak water pump may be behind the same symptoms, so find the cause before you replace anything.
Each of the 2005-2006 Ford Escape 2.3L, 2004-2006 Ford Ranger 2.3L and 2010-2013 Ford Transit Connect 2.0L takes one. If your car is not named here, look it up in the "Vehicles it fits" section to see its years and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet diameter: 1.102 in
- Discharge end: 0.460 in
- Length: 3.240 in
Build and materials
- Type: outlet with thermostat
- Material: plastic
- Thermostat: included
- Gasket or seal: included
- Country of origin: China
In the box
Thermostat housing with thermostat and a gasket or seal.
Interchange: 815917 · 9021072 · 4L5Z8575A · 4L5Z8575AA · 4L5Z8575AD · 4L5Z8575B · 34043 · 8241610 · 512195 · W98627 · 48689
This part cross-references / interchanges with the following part numbers:
815917, 86097, 9021072, 4L5Z8575A, 4L5Z8575AA, 4L5Z8575AD, 4L5Z8575B, 34043, 8241610, 512195, W98627, 48689
Frequently Asked Questions
Does the Four Seasons 86097 thermostat housing fit the 2004-2006 Ford Ranger 2.3L?
Yes. Four Seasons 86097 fits the 2004-2006 Ford Ranger 2.3L, and it also fits the 2010-2013 Ford Transit Connect 2.0L. Each takes one.
Does the 86097 thermostat housing come with the thermostat and a gasket?
Yes. This thermostat housing includes the thermostat, and a gasket or seal comes with it.
What is the Four Seasons 86097 thermostat housing made of?
Four Seasons 86097 is a plastic thermostat housing with the thermostat included. The inlet measures 1.102 in and the discharge end 0.460 in.
How can I tell if this plastic thermostat housing is failing?
Coolant seepage around the housing, a gauge that reads high or a slow warm-up can mean the housing or thermostat is worn. Look for wet or crusted coolant with the engine off and cool.
Is the 86097 thermostat housing leak tested?
Yes. This thermostat housing is 100% leak tested, and it is a direct-fit replacement.
