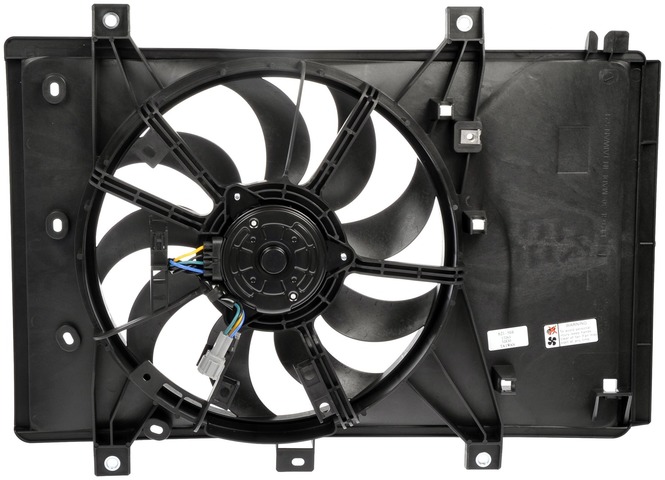

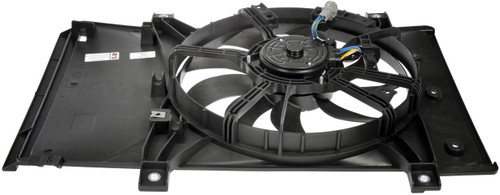

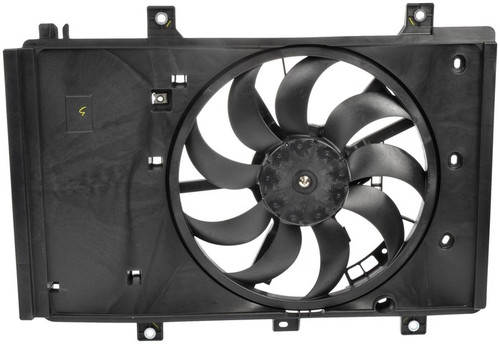

Dorman 621-568 radiator fan for the 2016-2022 Toyota Yaris 4-cylinder 1.5L and other vehicles pulls air through the radiator to help cool the engine. The assembly is sold without a controller and comes with its shroud. It is built with the same materials and components as the original part.
- Nine plastic blades in a forward align fin design, 380 mm in diameter
- Brushed 12-volt DC motor, tested in laboratory settings for performance
- Black plastic shroud included with the fan
- Male connector with 4 terminals
- Counterclockwise (left) fan rotation
Quick facts
- Part: Dorman 621-568 radiator fan
- Also called: cooling fan assembly
- Fits: 2016-2022 Toyota Yaris 4-cylinder 1.5L and other vehicles
- Material: Plastic (blades and shroud)
- Condition: New
A fan that does not spin when the engine is hot, or a temperature gauge that climbs in stop-and-go traffic, can mean the fan assembly is worn. A blown fuse, a bad relay, a faulty coolant temperature sensor or the fan controller can be behind the same signs, so find the cause before buying.
Fits
The listings cover a wide range of models, including the 2018-2020 Toyota Yaris R 4-cylinder 1.5L and the 2017-2018 Toyota Yaris iA 4-cylinder 1.5L; the fitment calls for one fan assembly per car.
Specifications
Fit and size
- Quantity per vehicle: 1
- Fan diameter: 380 mm
- Shaft diameter: 5 mm
- Fan blades: 9
- Terminals: 4, male connector
- Voltage: 12 V DC
- Fan rotation: counterclockwise (left)
Build and materials
- Type: radiator fan assembly without controller
- Motor: brushed
- Blade material: plastic
- Blade type: forward align fin
- Shroud: included, black plastic
- Grade: standard replacement
- Condition: new
- Country of origin: Taiwan
In the box
One radiator fan assembly with its shroud. The fan controller is not included.
Interchange: 2812115 · 623640 · 16360WB001
This part cross-references / interchanges with the following part numbers:
2812115, 623640, 16360WB001
