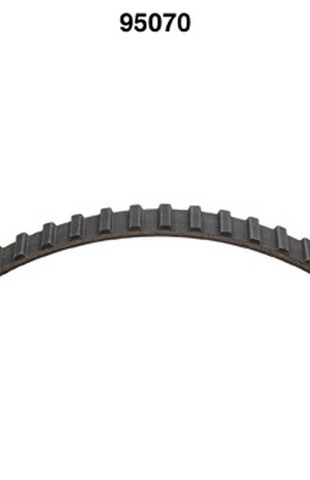

Dayco 95070 timing belt for the 1983-1988 Toyota Corolla and other vehicles keeps the camshaft turning in step with the engine's crankshaft. This Dayco timing belt, also called an engine timing belt, is a toothed belt that links the two drives.
- Square tooth profile with a 9.525 mm (0.375 in) tooth pitch
- 88 teeth on an effective length of 838 mm (33.00 in)
- Chloroprene belt material
- Standard temperature and load construction
Quick facts
- Part: Dayco 95070 timing belt
- Also called: engine timing belt
- Fits: 1983-1988 Toyota Corolla and other vehicles
- Position: Camshaft
- Material: Chloroprene
- Condition: New
Cracks or frayed edges on the belt, seen with the engine off and cool, can mean it is worn, and a belt that has slipped a tooth can bring on a misfire or hard starting. Before you replace it, look around the timing cover for oil seepage, since a leaking seal that soaks the belt can ruin the next one too.
Fits
This toothed belt fits the 1983 and 1986-1988 Toyota Corolla, the 1984-1985 Corolla L4-1.6L, the 2010-2012 John Deere Progator 2020A and the 2010-2012 John Deere Progator 2030A Diesel, along with a wide range of other vehicles and equipment. This listing is one belt, and the 1983-1988 Toyota Corolla takes one.
Specifications
Fit and size
- Position: Camshaft
- Quantity per vehicle: 1
- Effective length: 838 mm (33.00 in)
- Number of teeth: 88
- Tooth pitch: 9.525 mm (0.375 in)
Build and materials
- Tooth profile: Square tooth
- Construction: Standard temperature and load
- Material: Chloroprene
- Condition: New
This part cross-references / interchanges with the following part numbers:
94840054, 14400-MG9-000, MIU13563, 88ZA19, 12761-78400, 13568-15010, 13568-15020, 13568-15030, 13568-19125
Frequently Asked Questions
Does this timing belt for the 1983-1988 Toyota Corolla fit the L4-1.6L engine?
Yes. Dayco 95070 is listed for the 1984-1985 Toyota Corolla L4-1.6L, and for the 1983 and 1986-1988 Corolla. If your car is something else, look it up in the "Vehicles it fits" section.
Is the Dayco 95070 the cam belt for a 1983-1988 Toyota Corolla?
Yes. Cam belt is another name for a timing belt, and this one drives the camshaft on the 1983-1988 Toyota Corolla. The listing is for one belt.
How many teeth does the Dayco 95070 timing belt have?
Dayco 95070 has 88 teeth with a square tooth profile and a 9.525 mm (0.375 in) tooth pitch. Its effective length is 838 mm (33.00 in).
What does a worn Dayco 95070 timing belt look like?
A glazed back surface, missing teeth or an oil-soaked belt can show it is worn. Look only with the engine off and cool, and leave belt cover removal to a service.
What is the Dayco 95070 timing belt made of?
The belt is chloroprene, in a standard temperature and load construction. It has a square tooth profile.
