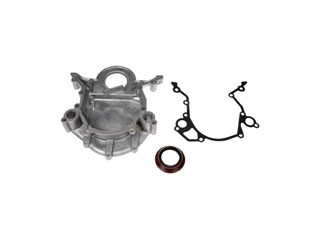

Dorman 635-100 timing cover for the 1987-1997 Ford F-250 V8 5.0L, the 1988-1997 F-250 V8 5.8L and other vehicles closes off the front of the engine over the timing components.
- Dorman OE Solutions line, standard replacement grade
- Aluminum cover designed to withstand extreme underhood temperatures
- Extensively tested for adherence to precise design standards
- Gasket and seal supplied with the cover
Quick facts
- Part: Dorman 635-100 timing cover
- Also called: engine timing cover
- Fits: the 1987-1997 Ford F-250 V8 5.0L, the 1988-1997 F-250 V8 5.8L and other vehicles
- Material: Aluminum
- Condition: New
A worn or failing timing cover can show up as oil seepage at the front of the engine or as cracks in the cover. These signs alone do not prove the cover is the problem; a leaking valve cover gasket can leave oil in the same area. The engine takes one cover on its front, sold individually.
Fits
It is a direct-replacement timing cover for the 1987-1996 Ford F-150 V8 5.0L, the 1988-1996 F-150 V8 5.8L, the 1987-1996 Ford Bronco V8 5.0L and the 1988-1996 Bronco V8 5.8L. If your vehicle is not named here, find its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Length: 12 in
- Width: 11 in
- Depth: 53 mm
- Mounting holes: 8
- Mounting hole diameter: 11.2 mm
Build and materials
- Material: Aluminum
- Grade: Standard replacement
- Condition: New
- Country of origin: China
In the box
One timing cover, one gasket and one seal. Mounting hardware is not included, so plan on new bolts.
Interchange: 103002 · E7TZ6019A · F6TZ6019NA · 500302L
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
103002, E7TZ6019A, F6TZ6019NA, 500302L
Frequently Asked Questions
Will this Ford F-150 timing cover fit the 1988-1996 model with the V8 5.8L?
Yes. Dorman 635-100 fits the 1987-1996 Ford F-150 V8 5.0L and the 1988-1996 F-150 V8 5.8L. For other vehicles, look in the "Vehicles it fits" section.
Does this engine timing cover come with a gasket and seal?
Yes. The Dorman 635-100 comes with one timing cover, one gasket and one seal. Mounting hardware is not included.
What are the mounting hole specs on this Dorman timing cover?
It has eight mounting holes with a mounting hole diameter of 11.2 mm. The cover is aluminum.
How can I tell if my timing cover is cracked or leaking?
With the engine off and cool, look at the front of the engine for oil seepage, cracks or damaged edges on the cover. A shop can test further if you are unsure.
Is the Dorman 635-100 a replacement for the E7TZ6019A number?
Yes. E7TZ6019A is one of the numbers Dorman 635-100 replaces, along with 103002, F6TZ6019NA and 500302L.
