Nut - Dorman 962-016

$24.99

Part number: 962-016

UPC: 885484239968

Condition: New

Weight: 0.06 LBS

Item Package Quantity: 1

$24.99

Current Stock: 17

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Dorman Nut P/N:962-016

$24.99

Description

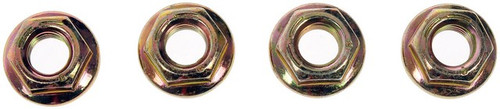

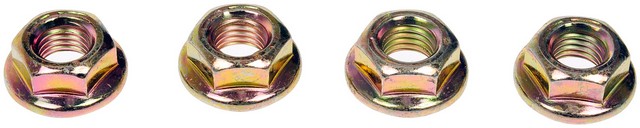

Dorman 962-016 nut threads onto 5/16-24 hardware and spreads clamping load across its attached washer flange. It suits a variety of uses, from auto to home.

Grade 8 steel flanged nut with an attached washer
Fine 5/16-24 UNF thread made to specific thread tolerance standards
Salt spray tested for corrosion resistance, with a yellow zinc finish
Heat hardened for strength

Quick facts

Part: Dorman 962-016 nut
Material: Steel
Condition: New

A stripped thread, a bent flange or heavy rust can mean a nut is worn out. Before you replace it, rule out a damaged stud or bolt thread first, because a worn thread can ruin the new nut too.

Fits

This is universal hardware, sold by size and thread rather than by application. Match the 5/16-24 thread, the flange diameter and the height to the nut you are replacing.

Specifications

Fit and size

Thread size: 5/16-24 UNF, fine thread, 24 threads per inch
Thread direction: right-hand (clockwise)
Thread diameter: 0.312 in
Inside diameter: 5/16 in
Flange diameter: 0.67 in
Height: 0.28 in
Pieces in the pack: 4

Build and materials

Material: Steel
Nut grade: Grade 8
Finish: Yellow zinc
Heat hardened: Yes
Condition: New
Country of origin: India

In the box

Four flanged nuts, each with an attached washer. This listing holds four nuts; how many your project takes depends on the part being replaced.

Product information is for general reference and may contain errors. See our Disclaimer.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

How do I know if this 5/16-24 flanged nut fits my project?

Match the 5/16-24 thread, the 0.67 in flange diameter and the 0.28 in height to the nut being replaced. Dorman 962-016 is sold by size and thread, not by application.

How many flanged nuts come in the Dorman 962-016 pack?

The pack holds four nuts, each with an attached washer flange.

Is this 5/16-24 nut a fine or coarse thread?

Fine. The thread is UNF at 24 threads per inch, and it turns clockwise (right-hand).

What is this flanged nut made of and how is it finished?

Dorman 962-016 is Grade 8 steel, heat hardened, with a yellow zinc finish. The hardware undergoes salt spray testing for corrosion resistance.

How can I tell a flanged nut needs replacing?

Check by eye for rounded or stripped threads, a warped flange or heavy corrosion. Any of these can mean the nut no longer clamps properly, so compare the thread against the 5/16-24 size when choosing a new one.
