Front Brake Rotor for 2010-2014 Ford F-150 & More - Raybestos 680768R

$167.99

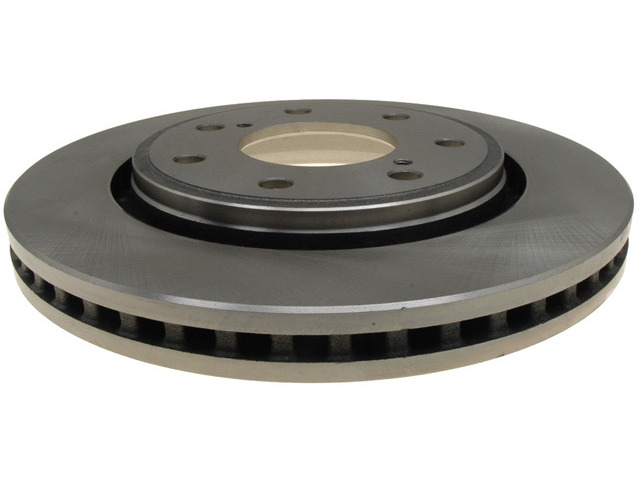

Raybestos Brakes Disc Brake Rotor 680768R

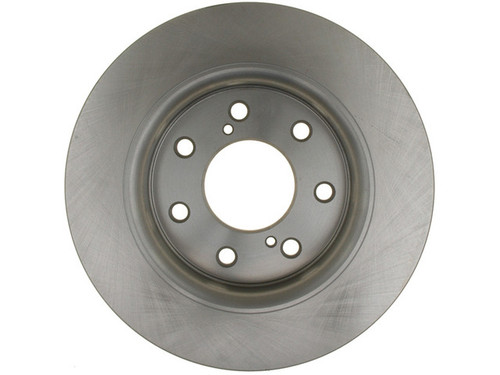

Raybestos Brakes Disc Brake Rotor 680768R - view 2

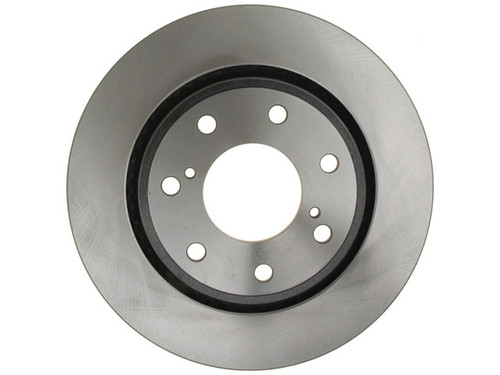

Raybestos Brakes Disc Brake Rotor 680768R - view 3
Raybestos Brakes Disc Brake Rotor 680768R
Raybestos Brakes Disc Brake Rotor 680768R - view 2
Raybestos Brakes Disc Brake Rotor 680768R - view 3

Vehicles this part fits
    Part number: 680768R
    UPC: 829352778746
    Condition: New
    Weight: 6.46 LBS
    Item Package Quantity: 1
    $167.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Raybestos Brakes Disc Brake Rotor P/N:680768R
    Raybestos Brakes Disc Brake Rotor P/N:680768R
    $167.99
    $167.99

    Raybestos Brakes 680768R front brake rotor for the 2010-2014 Ford F-150 and other vehicles is the vented disc the brake pads clamp to slow the wheel.

    • Raybestos R-Line series, engineered for everyday driving conditions
    • Made with G3000-qualified material
    • Meets the SAE standard for tensile strength, for structural integrity and service life
    • Low initial lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
    • Mill balanced edges, 100 percent validated, to minimize thickness variation and vibration

    Quick facts

    • Part: Raybestos Brakes 680768R brake rotor
    • Also called: disc brake rotor
    • Fits: 2010-2014 Ford F-150 and other vehicles
    • Position: Front
    • Condition: New

    Pedal pulsation, vibration or noise when braking, or a grooved, cracked or rusted rotor face, can mean the rotor is worn. Before you replace the rotor, rule out worn pads or a sticking caliper, since either can cause similar signs. This listing is one rotor and the 2010-2014 Ford F-150 takes two, so order two and fit them together.

    Fits

    This rotor is a direct-fit replacement for the 2010-2014 Ford F-150 and the 2012-2014 Ford Lobo. It is developed from OE samples for OE fit, form and function.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Outside diameter: 349.9 mm (13.776 in)
    • Inside diameter: 236.25 mm (9.302 in)
    • Center hole diameter: 90.05 mm (3.545 in)
    • Bolt circle: 150 mm (5.906 in), 7 lug holes
    • Mounting bolt hole diameter: 15.7 mm (0.618 in)
    • Overall height: 49.5 mm (1.949 in)
    • Nominal thickness: 34.05 mm (1.34 in)
    • Discard thickness: 32 mm (1.26 in)

    Build and materials

    • Type: vented, conventional (not drum-in-hat)
    • Surface: smooth
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    Frequently Asked Questions

    Are these brake rotors for the 2010-2014 Ford F-150 front or rear?

    Front. Raybestos Brakes 680768R is a front brake rotor for the 2010-2014 Ford F-150, and it also fits the 2012-2014 Ford Lobo.

    What bolt circle and center hole does the Raybestos Brakes 680768R have?

    The bolt circle is 150 mm (5.906 in) with 7 lug holes, and the center hole is 90.05 mm (3.545 in). Outside diameter is 349.9 mm (13.776 in).

    What is the discard thickness of this disc brake rotor?

    Discard thickness is 32 mm (1.26 in); a new rotor is 34.05 mm (1.34 in) nominal. Measure it with the engine off, and replace the rotor once it reaches 32 mm.

    Does this front rotor come with an ABS tone ring?

    No. The ABS tone ring is not included with this rotor.

    How do R-Line rotors like this one help with brake pedal pulsation?

    The rotor's low initial lateral runout and thickness variation are intended to mean less pedal pulsation and brake noise, and its mill balanced edges help minimize vibration.
