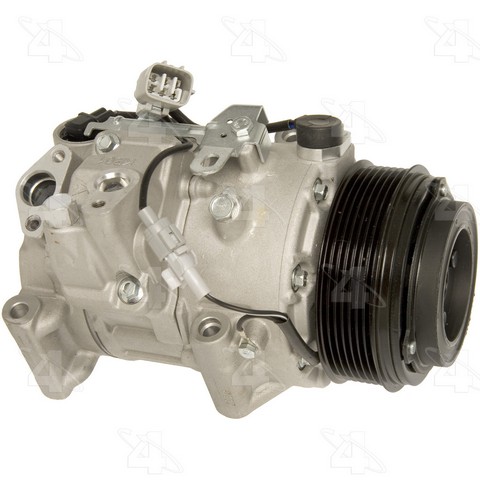

Four Seasons 158323 A/C compressor for the 2008-2010 Toyota Highlander pressurizes and circulates refrigerant through the air conditioning system. This Four Seasons AC compressor is a new Denso 7SBH17C unit that meets or exceeds OE specifications.
- Validated to deliver performance equivalent to 100,000 miles
- Pre-charged with 3 ounces of PAG oil to reduce install time
- Each compressor is vacuum, pressure and helium mass spectrometer tested for leaks
- Clutch included with the compressor
Quick facts
- Part: Four Seasons 158323 A/C compressor
- Fits: 2008-2010 Toyota Highlander
- Condition: New
Weak cooling, a noisy compressor or a clutch that does not engage can also come from low refrigerant, a leaking line, a bad relay or a failed pressure switch, so find the cause before buying a compressor. If the compressor is the cause, this one replaces it.
Fits
It is an AC compressor for the 2008-2010 Toyota Highlander, and a 2008 Highlander AC compressor is the same part as the 2009 and 2010 ones. A 2008-2010 Toyota Highlander takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting type: Tangent mount
- Outside pulley diameter: 4.250 in
- Pulley grooves: 7
- Pulley belt type: Serpentine
- Outlet C length: 108 mm
Build and materials
- Compressor type: Denso 7SBH17C
- Clutch: included, 12-volt DC coil
- Refrigerant type: R134A
- Compatible refrigerant oil: PAG 46
- Connector type: Pin
- Condition: New
- Country of origin: Mexico
In the box
One A/C compressor with its clutch, one 24681 O-ring and one 24661 O-ring, plus the sealing washers needed to install it. Mounting hardware and a switch are not included, so plan on new mounting bolts.
Installation notes
- May require use of the OE manifold.
- ECV harness connector: compressor SE10F, vehicle SE10M.
Frequently Asked Questions
Is this the right AC compressor for a 2008 Toyota Highlander?
Yes. Four Seasons 158323 fits the 2008-2010 Toyota Highlander, and the vehicle takes one.
Does this Four Seasons compressor come with the clutch?
Yes. Four Seasons 158323 includes the clutch, one 24681 O-ring, one 24661 O-ring and sealing washers. A switch and mounting hardware are not included.
How much oil is already in this A/C compressor?
It is pre-charged with 3 ounces of PAG oil, and the compatible refrigerant oil type is PAG 46. The compressor is compatible with R134a or R1234yf systems.
What can a leaking or failing AC compressor look like?
With the engine off, oily residue around the compressor or its fittings can show a leak. A failing compressor can also be noisy or cool weakly; a shop can test pressures and the clutch circuit.
Which harness connector and manifold go with this compressor?
The ECV harness connector is SE10F on the compressor and SE10M on the vehicle side. The installation may require use of the OE manifold.
