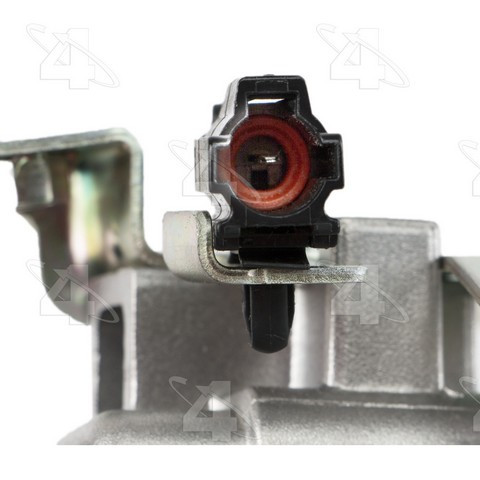

Four Seasons 158485 A/C compressor for the 2011-2013 Subaru Forester compresses refrigerant and circulates it through the air conditioning system. This new Valeo DKV10R unit meets or exceeds OE specifications.
- Pre-charged with 3 ounces of PAG oil to cut install time
- Works with R134a or R1234yf refrigerant systems
- Individually vacuum, pressure and helium mass spectrometer tested for a leak-free system
- Validated for performance equivalent to 100,000 miles
- Clutch included, with a 12-volt DC coil
Quick facts
- Part: Four Seasons 158485 A/C compressor
- Fits: 2011-2013 Subaru Forester
- Condition: New
Warm air from the vents, a grinding or squealing noise, or a clutch that does not engage can mean a worn compressor. A low refrigerant charge, a slipping belt or a wiring fault can produce those signs too, so find the cause first. With the engine off and cool, look over the belt and the compressor body for oily residue.
Fits
This A/C compressor is a direct-fit replacement for the 2011-2013 Subaru Forester.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside pulley diameter: 4.250 in
- Pulley grooves: 6
- Outlet length: 109 mm
- Mounting type: 3 Ear & 1 Tangent
- Connector type: Pin
Build and materials
- Condition: New
- Clutch: included
- Coil voltage: 12 V DC
- Compatible refrigerant oil: PAG 100
- Pulley belt type: Serpentine
- Country of origin: China
In the box
One compressor with its clutch, one O-ring 24659, one O-ring 24602 and the sealing washers needed for installation. Mounting hardware is not included, so plan on new bolts rather than reusing the old ones. This listing is one compressor, and the 2011-2013 Subaru Forester takes one.
Interchange: C3530 · 274533 · T158485 · 639791 · 208314 · AC1208314 · 6512978 · 6513348 · 7512978 · A74533 · 891693 · 2022263 · 141053NC · 7422116 · 73111SC020 · CO11227N · CO29104C · CO29104Z
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
C3530, 274533, T158485, 639791, 158485, 208314, AC1208314, 6512978, 6513348, 7512978, A74533, 891693, 2022263, 141053NC, 7422116, 73111SC020, CO11227N, CO29104C, CO29104Z
Frequently Asked Questions
Is this the right A/C compressor for a 2012 Subaru Forester?
Yes. Four Seasons 158485 is listed for the 2011-2013 Subaru Forester, which includes the 2012 model year.
Is the clutch included on this 2011-2013 Subaru Forester compressor?
Yes. Four Seasons 158485 comes with its clutch, which has a 12-volt DC coil, so the clutch does not need to be bought separately.
How much oil is in this Four Seasons compressor?
This compressor is pre-charged with 3 ounces of PAG oil, and the compatible refrigerant oil type is PAG 100. It works with R134a or R1234yf systems.
What can I look for on a worn compressor with the engine off?
With the engine off and cool, look for oily residue on the compressor body or fittings, a damaged clutch face, or a glazed or frayed belt. A shop can test pressures and clutch operation.
Is each Four Seasons 158485 compressor leak tested?
Yes. Each compressor is individually vacuum, pressure and helium mass spectrometer tested to confirm a leak-free system.
