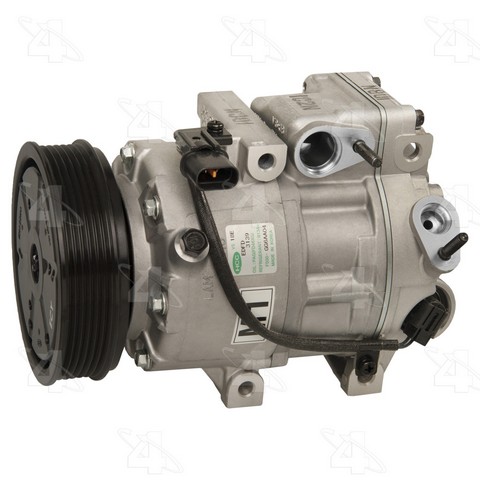

Four Seasons 178316 A/C compressor for the 2009-2012 Hyundai Genesis compresses and circulates refrigerant through the air conditioning system. This Four Seasons compressor is new and comes with its clutch.
- Pre-charged with 3 ounces of PAG oil to reduce prep time
- New compressors are tested for durability equal to 100,000 miles

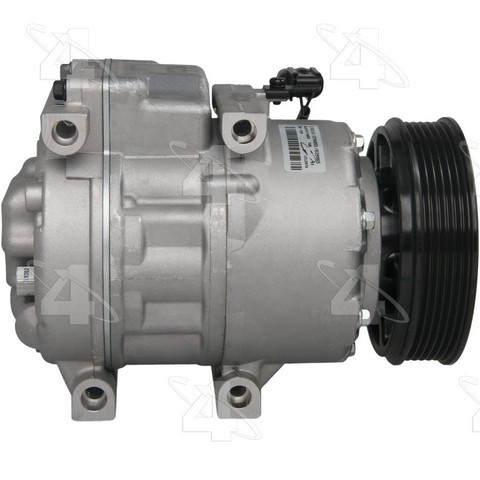

- Six-groove pulley, 4.750 in outside diameter, for a serpentine belt
- 12-volt DC coil voltage
Quick facts
- Part: Four Seasons 178316 A/C compressor
- Fits: 2009-2012 Hyundai Genesis
- Condition: New
Warm air from the vents, a noisy compressor or a clutch that does not engage can point to a failing compressor, but low refrigerant or an electrical fault can show the same. With the engine off and cool, start by looking over the serpentine belt, the pulley and the line fittings for wear or oily residue. A shop can test pressure and clutch operation.
Fits
This is a direct-fit replacement A/C compressor for the 2009-2012 Hyundai Genesis, built to OE standards.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside pulley diameter: 4.750 in
- Pulley grooves: 6
- Pulley belt type: Serpentine
- Mounting type: Tangent mount
- Outlet length: 119 mm
- Connector type: Pin
Build and materials
- Compressor type: Halla VS18E
- Clutch: included
- Coil voltage: 12 V DC
- Refrigerant type: R134A
- Compatible oil: PAG 46
- Condition: New
- Country of origin: China
In the box
One A/C compressor with its clutch, pre-charged with 3 ounces of PAG oil, plus O-rings and sealing washers for R12, R134a and R1234yf applications (one each of O-ring 24602 and 24659). The 2009-2012 Hyundai Genesis takes one compressor, and this listing is one. Mounting hardware and the switch are not included, so plan on new mounting bolts.
Installation notes
- OE-style connectors are meant to fit without splicing.

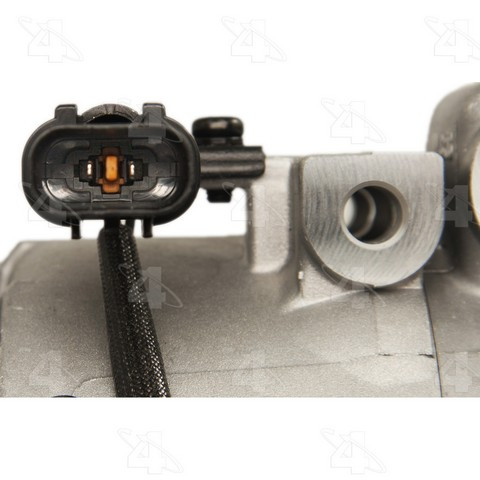

- ECV harness connector: compressor SE30F, vehicle SE22M.
- May require use of the OE manifold.
Interchange: C2068 · 276055 · T178316 · 639965 · 208655 · AC1208655 · 6512837 · 7512837 · 977013M000 · 977013M001 · A76055 · 4716066 · 891749 · 2021981 · 140873NC · 7422345 · CO10958C · CO10958SC · CO10958X
This part cross-references / interchanges with the following part numbers:
C2068, 276055, T178316, 639965, 178316, 208655, AC1208655, 6512837, 7512837, 977013M000, 977013M001, A76055, 4716066, 891749, 2021981, 140873NC, 7422345, CO10958C, CO10958SC, CO10958X
Frequently Asked Questions
Does the Four Seasons 178316 compressor fit the 2009-2012 Hyundai Genesis?
Yes. Four Seasons 178316 is listed for the 2009-2012 Hyundai Genesis, and that car takes one compressor.
Does this Four Seasons compressor come with the clutch and oil?
Yes. The clutch is included and the compressor is pre-charged with 3 ounces of PAG oil. O-rings and sealing washers come with it; mounting hardware and the switch do not.
What refrigerant oil does the 178316 compressor use?
Four Seasons 178316 ships pre-charged with 3 ounces of PAG oil, and PAG 46 is its compatible refrigerant oil type. Its listed refrigerant type is R134A.
Does this A/C compressor need a special connector or manifold?
The compressor's ECV harness connector is SE30F and the vehicle side is SE22M. It may require use of the OE manifold.
What pulley does the Halla VS18E compressor have?
It has a six-groove pulley with a 4.750 in outside diameter, made for a serpentine belt.
