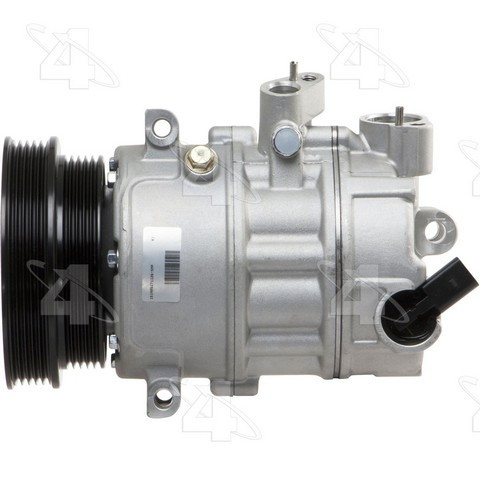

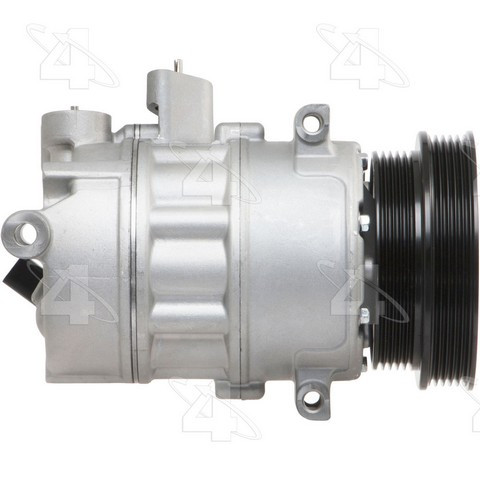

Four Seasons 198567 A/C compressor for the 2005-2016 Volkswagen Jetta and other vehicles pumps and pressurizes refrigerant to run the air conditioning system.
- Sanden PXE16 compressor with the clutch included
- Pre-charged with 3 ounces of PAG oil and compatible with R134a or R1234yf systems
- Validated to deliver performance equivalent to 100,000 miles
- Individually vacuum, pressure and helium mass spectrometer tested for leaks
- Supplied with the O-rings and sealing washers needed to install it
Quick facts
- Part: Four Seasons 198567 A/C compressor
- Fits: the 2005-2016 Volkswagen Jetta and other vehicles
- Condition: New
A failing compressor can show up as warm air from the vents, noise from the compressor or clutch, or a clutch that does not engage. Before you replace the compressor, rule out a low refrigerant charge, a leak or a fault in the clutch circuit; a shop can test the system. The engine drives a single compressor through its serpentine belt, so each vehicle takes one.
Fits
This A/C compressor is listed for a wide range of Volkswagen and Audi models, led by the 2012-2014 Volkswagen Passat and the 2010-2014 Volkswagen Golf. It meets or exceeds OE specifications. Driving something else? Look up your year and model in the “Vehicles it fits” section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting type: Tangent mount
- Pulley: 10 grooves, 4.375 in outside diameter, serpentine belt
- Inlet length: 127 mm
- Outlet C length: 111 mm
Build and materials
- Type: Sanden PXE16
- Refrigerant: R134A
- Oil: PAG 46, pre-charged with 3 ounces
- Clutch: included, 12 V DC coil
- Connector: pin; ECV harness connector: compressor SE35F, vehicle SE35M
- Condition: New
- Country of origin: Mexico
In the box
One compressor with its clutch, plus O-ring 24659 and O-ring 24635. Mounting hardware and a switch are not included, so plan on new bolts.
Frequently Asked Questions
Is this the right A/C compressor for a 2005-2016 VW Jetta, 2012 included?
Yes. Four Seasons 198567 is listed for the 2005-2016 Volkswagen Jetta, which covers 2012, and each car takes one compressor.
Is this the right A/C compressor for a 2012-2014 VW Passat?
Yes. Four Seasons 198567 is listed for the 2012-2014 Volkswagen Passat. For another year or model, look it up in the “Vehicles it fits” section.
Is the Four Seasons compressor pre-charged with oil?
Yes. This compressor comes pre-charged with 3 ounces of PAG oil and works with R134a or R1234yf systems. The compatible oil type is PAG 46.
How many grooves does the pulley on this compressor have?
The pulley has 10 grooves and a 4.375 in outside diameter, and it takes a serpentine belt.
Does the 198567 compressor come with its clutch and O-rings?
Yes. The clutch is included, along with O-ring 24659 and O-ring 24635. Mounting hardware and a switch are not included.
