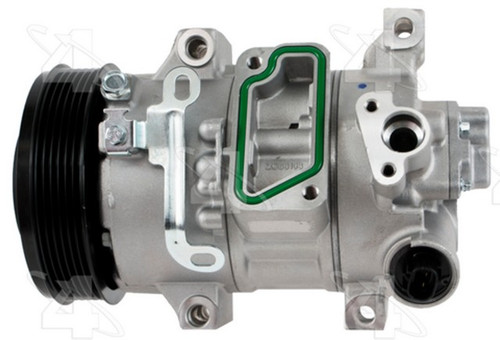

Four Seasons 68328 A/C compressor for the 2009-2010 Toyota Corolla and other vehicles compresses refrigerant and moves it through the A/C system. This Four Seasons compressor is a new Denso 6SEU14C unit.
- Validated for performance equivalent to 100,000 miles
- Pre-charged with 3 ounces of PAG oil
- Works in R134a or R1234yf systems
- Individually vacuum, pressure and helium mass spectrometer tested for leaks
- Clutch included with the compressor
Quick facts
- Part: Four Seasons 68328 A/C compressor
- Fits: 2009-2010 Toyota Corolla and other vehicles
- Condition: New
Warm air from the vents, a clutch that does not engage or a grinding noise from the compressor can mean it is wearing out, though a low refrigerant charge, a worn belt or a control fault can produce them too. With the engine off and cool, look over the belt and for oily residue around the compressor; a shop can test pressure.
Fits
This A/C compressor fits the 2009-2010 Toyota Corolla, the 2008-2014 Scion xD, the 2009-2010 Toyota Matrix and the 2012 Toyota Matrix. Its specifications meet or exceed OE specs.
Specifications
Fit and size
- Quantity per vehicle: 1

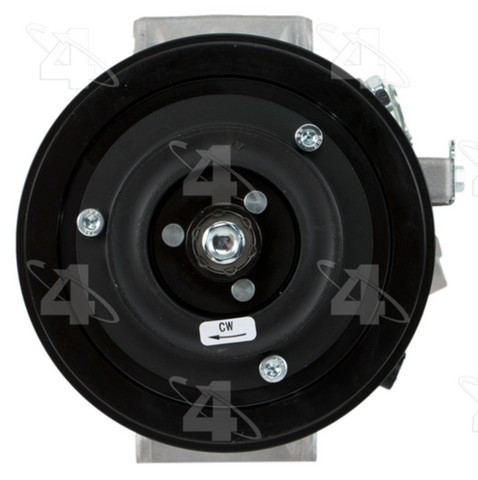

- Outside pulley diameter: 4.750 in
- Pulley grooves: 6

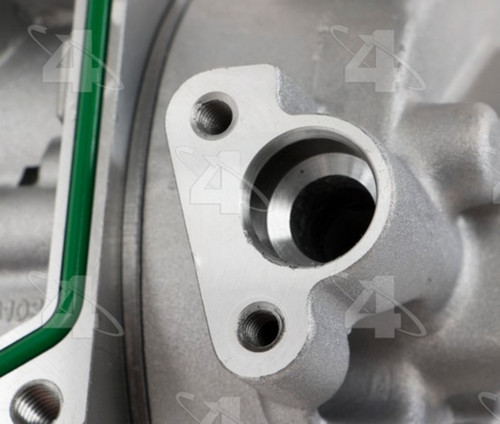

- Outlet C length: 119 mm
- Mounting type: Tangent mount
- ECV harness connector: Compressor SE10F, vehicle SE10M
Build and materials
- Compressor type: Denso 6SEU14C
- Pulley belt type: Serpentine
- Clutch: included
- Coil voltage: 12 V DC
- Compatible refrigerant oil: PAG 46
- Condition: New
- Country of origin: Mexico
In the box
One A/C compressor with its clutch, plus the O-rings and sealing washers needed to install it (one 24681 and one 24661 O-ring). The switch and mounting hardware are not included, so plan on new mounting bolts, since the old ones may not be reusable. This listing is one compressor, and these vehicles take one.
Installation notes
- May require use of the OE manifold.

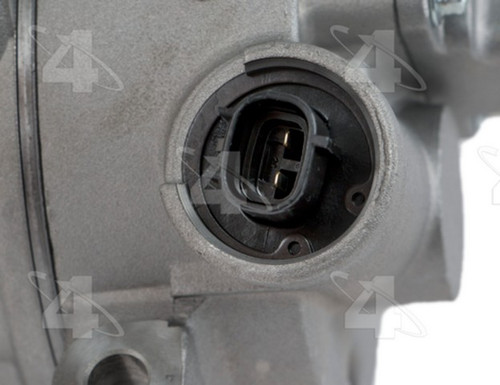

- The control valve harness connects SE10F on the compressor to SE10M on the vehicle.
