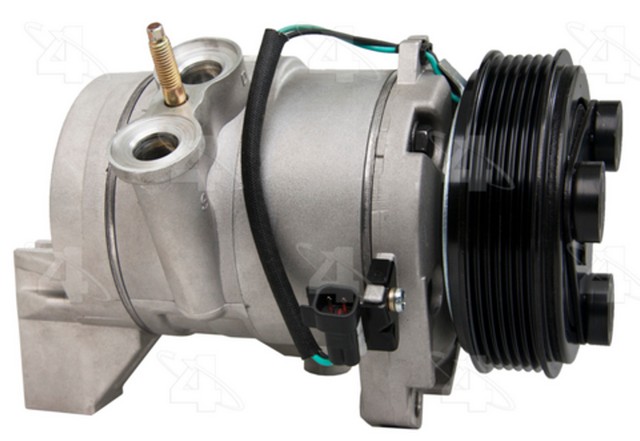

Four Seasons 68678 A/C compressor for the 2008-2009 Chevrolet Equinox and other vehicles pressurizes and circulates refrigerant through the air conditioning system. It is built to meet or exceed OE specifications.
- Pre-charged with 3 ounces of PAG oil to cut install time
- Individually vacuum, pressure and helium mass spectrometer tested for leaks
- Validated to deliver performance equivalent to 100,000 miles
- Clutch included, with a 12 V DC coil and a 6-groove pulley for a serpentine belt
Quick facts
- Part: Four Seasons 68678 A/C compressor
- Fits: 2008-2009 Chevrolet Equinox and other vehicles
- Condition: New
Warm air at the vents, noise from the compressor or a clutch that will not engage can all be signs of a worn compressor. A low refrigerant charge from a leak, a failed relay or a blocked condenser can show up the same way, so find the cause before buying.
Fits
This A/C compressor fits the 2008-2009 Chevrolet Equinox, the 2008-2009 Pontiac Torrent and the 2007-2009 Suzuki XL-7. A 2008-2009 Chevrolet Equinox takes one compressor, and so do the other two.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside pulley diameter: 4.750 in
- Pulley grooves: 6
- Pulley belt type: serpentine
- Outlet C length: 121 mm
- Mounting type: tangent mount
- Coil voltage: 12 V DC
Build and materials
- Condition: new
- Compressor model: Valeo DKS17DS
- Refrigerant type: R134A
- Compatible refrigerant oil: PAG 46
- Connector type: pin
- Country of origin: China
In the box
One A/C compressor with its clutch and two 24354 sealing washers. Mounting hardware and a switch are not included, so plan on new bolts, since the old ones may not be reusable.
Interchange: 1521590 · 275779 · T68678 · 639770 · 19130252 · 208914 · AC1208914 · 7512766 · A75779 · 891600 · 140349NC · 9520078J01 · CO21590C · CO21590Z
This part cross-references / interchanges with the following part numbers:
1521590, 275779, T68678, 639770, 68678, 19130252, 208914, AC1208914, 7512766, A75779, 891600, 140349NC, 9520078J01, CO21590C, CO21590Z
Frequently Asked Questions
Is this ac compressor a fit for the 2008-2009 Chevy Equinox?
Yes. Four Seasons 68678 fits the 2008-2009 Chevrolet Equinox, and the Equinox takes one compressor.
Does the Four Seasons ac compressor include the clutch and O-rings?
Yes. Four Seasons 68678 comes with its clutch and two 24354 sealing washers. Mounting hardware and a switch are not included.
How many grooves does the pulley on this A/C compressor have?
The pulley has 6 grooves and a 4.750 in outside diameter, and it takes a serpentine belt. The clutch coil is 12 V DC.
Which oil does this Four Seasons compressor take?
This compressor arrives pre-charged with 3 ounces of PAG oil, and its listed compatible refrigerant oil is PAG 46. The listed refrigerant type is R134A.
Does Four Seasons 68678 replace compressor number 1521590?
Yes. 1521590 is one of the other-brand and OE numbers that Four Seasons 68678 replaces.
