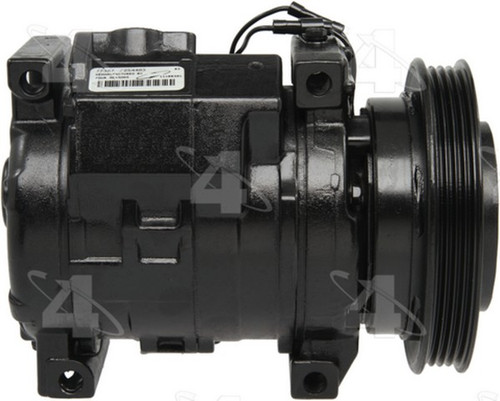

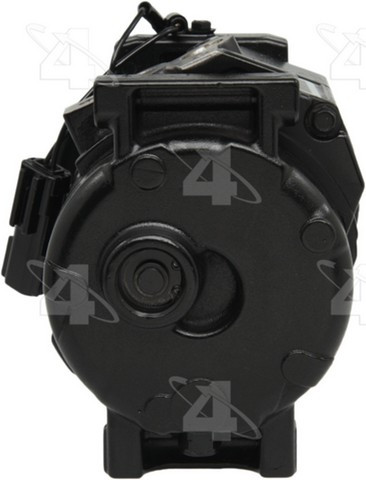

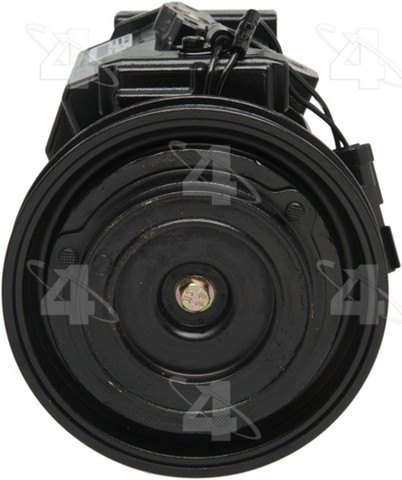

Four Seasons 77387 A/C compressor for the 2001-2010 Chrysler PT Cruiser compresses refrigerant and moves it through the A/C system. This remanufactured Four Seasons ac compressor is a Denso 10S15C unit.
- Every unit is tested for compressor function and noise level
- Pre-charged with 3 ounces of PAG oil for R134a or R1234yf applications
- Individually vacuum and pressure tested to check for leaks
- Comes with the O-rings and sealing washers needed to install the compressor
- 4-groove pulley for a serpentine belt and a 12-volt DC coil
Quick facts
- Part: Four Seasons 77387 A/C compressor
- Fits: 2001-2010 Chrysler PT Cruiser
- Condition: Remanufactured
Warm air from the vents, a noisy compressor or a clutch that will not engage can mean the compressor is worn, though a low refrigerant charge or a faulty relay can be behind the same signs, so find the cause before you replace it.
Fits
This is a direct-fit 2001-2010 PT Cruiser ac compressor for Chrysler. The engine takes one compressor.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside pulley diameter: 5.125 in
- Pulley grooves: 4
- Pulley belt type: Serpentine
- Outlet length: 130 mm
- Mounting type: Tangent mount
- Coil voltage: 12 V DC
Build and materials
- Condition: Remanufactured
- Compressor type: Denso
- Refrigerant type: R134A
- Compatible refrigerant oil: PAG 46
- Clutch: Included
- Connector type: Pin
- O-ring and sealing washer kits: 24068 and 24069, one of each
- Country of origin: Mexico
In the box
One compressor with its clutch. Mounting hardware and the switch are not included, so plan on new mounting bolts rather than reusing the old ones.
Installation notes
- May require use of the OE manifold.
Interchange: 1521608 · 254483 · DW77387 · 5058032AA · 5058032AB · 5058032AC · 5058032AD · 5278724AA · R5058032AC · RL058032AC · 650401 · 11177387 · 19144650 · 19193594 · 204009R · A84473 · 035027
This part cross-references / interchanges with the following part numbers:
1521608, 254483, DW77387, 5058032AA, 5058032AB, 5058032AC, 5058032AD, 5278724AA, R5058032AC, RL058032AC, 650401, 11177387, 77387, 19144650, 19193594, 204009R, A84473, 035027
Frequently Asked Questions
Is Four Seasons 77387 a 2006 PT Cruiser ac compressor?
Yes, Four Seasons 77387 fits the 2001-2010 Chrysler PT Cruiser, which includes 2006, and the engine takes one compressor.
Does this Four Seasons compressor come with the clutch and oil?
Yes, Four Seasons 77387 includes the clutch and is pre-charged with 3 ounces of PAG oil, with O-rings and sealing washers; mounting hardware and the switch are not included.
What refrigerant and oil does this A/C compressor use?
It is listed for R134A, and the compatible refrigerant oil is PAG 46. The 3 ounces of PAG oil inside are for R134a or R1234yf applications.
How many grooves does the pulley on this compressor have?
The pulley has 4 grooves for a serpentine belt and measures 5.125 inches across the outside.
Do I need to reuse the OE manifold with this reman compressor?
It may require use of the OE manifold. Each compressor is individually vacuum and pressure tested to check for leaks.
