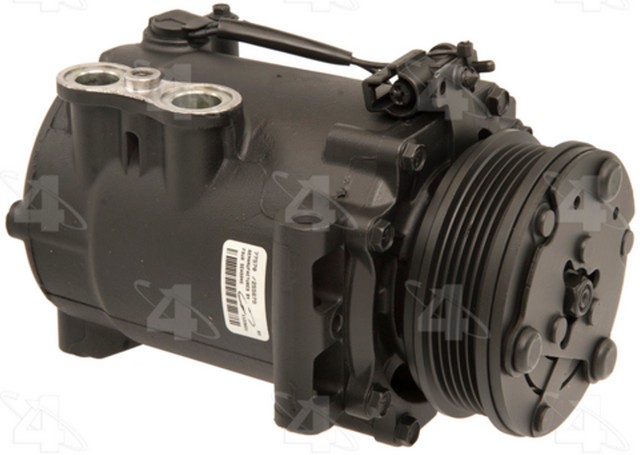

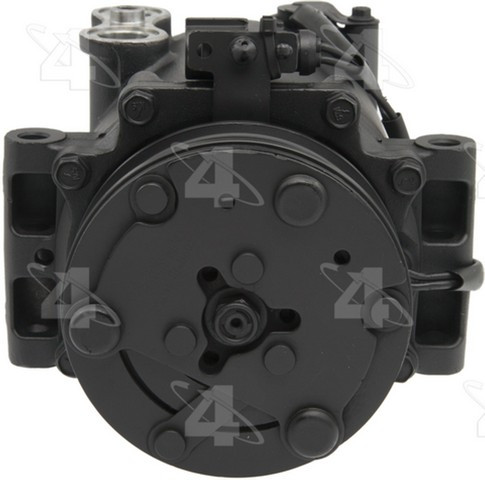

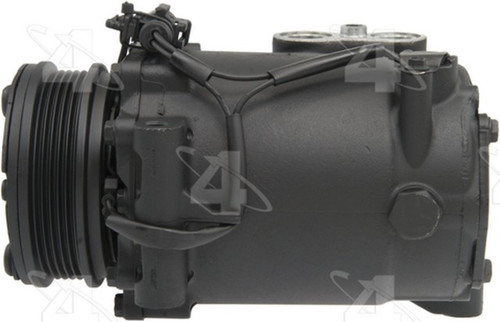

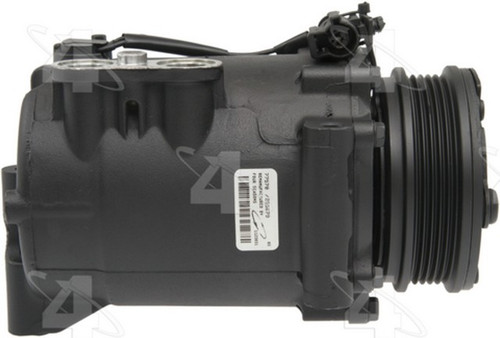

Four Seasons 77570 A/C compressor for the 2002-2007 Saturn Vue is a remanufactured scroll compressor that circulates refrigerant through the A/C system.
- 100 percent tested for compressor function and noise level
- Individually vacuum and pressure tested to confirm there are no leaks
- Pre-charged with 3 ounces of PAG oil for R134a or R1234yf applications
- Scroll-type compressor with a 24.7 mm discharge port
Quick facts
- Part: Four Seasons 77570 A/C compressor
- Fits: 2002-2007 Saturn Vue
- Condition: Remanufactured
Weak cooling, a noisy compressor or a clutch that stops engaging can mean the compressor is worn. A leaking condenser or a failed A/C pressure switch can lie behind those signs too, so find the actual cause before you replace the compressor.
Fits
This is a direct-fit 2002-2007 Saturn Vue A/C compressor, and the vehicle takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside pulley diameter: 4.000 in
- Pulley grooves: 5
- Pulley belt type: serpentine
- Mounting type: tangent mount
- Outlet C length: 102 mm
Build and materials
- Condition: remanufactured
- Refrigerant type: R134A
- Compatible refrigerant oil: PAG 46
- Coil voltage: 12 V DC
- Connector type: pin
- Country of origin: Mexico
In the box
One remanufactured A/C compressor with its clutch, its switch with heat sensor, and the sealing washers needed to install it: one 24404 and one 24402 slim line sealing washer. Mounting hardware is not included, so plan on new bolts.
Interchange: 255679 · DW77570 · 11177570 · 15783639 · 15859897 · 15922970 · 15922971 · 22667432 · 22722684 · 5512311 · A55679 · 140286C · 22722682 · CO10861RH
This part cross-references / interchanges with the following part numbers:
255679, DW77570, 11177570, 77570, 15783639, 15859897, 15922970, 15922971, 22667432, 22722684, 5512311, A55679, 140286C, 22722682, CO10861RH
Frequently Asked Questions
Is this the right A/C compressor for a 2007 Saturn Vue?
Yes. Four Seasons 77570 fits the 2002-2007 Saturn Vue, which includes the 2007 model year, and each vehicle takes one compressor.
Does the Four Seasons 77570 come with the clutch and O-rings?
Yes. Four Seasons 77570 includes the clutch, the switch with its heat sensor, and one 24404 and one 24402 slim line sealing washer. Mounting hardware is not included.
What oil is in this remanufactured A/C compressor?
This remanufactured compressor comes pre-charged with 3 ounces of PAG oil for R134a or R1234yf applications, and the compatible refrigerant oil type is PAG 46.
How many grooves does the pulley on this compressor have?
The pulley has 5 grooves and a 4.000 in outside diameter, and its belt type is serpentine.
Is this Four Seasons compressor tested before use?
Yes. Each remanufactured compressor is 100 percent tested for function and noise level, and every unit is vacuum and pressure tested on its own to check for leaks.
