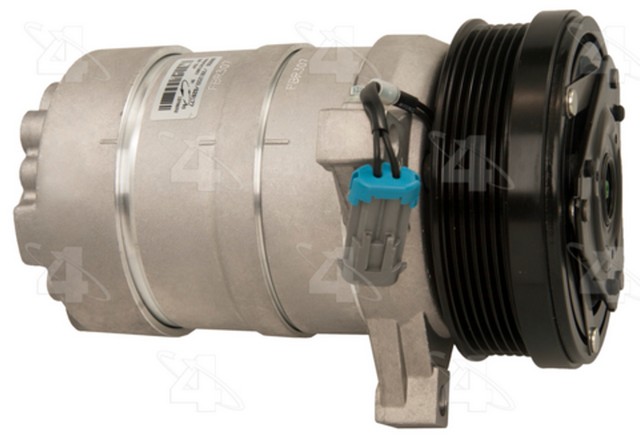

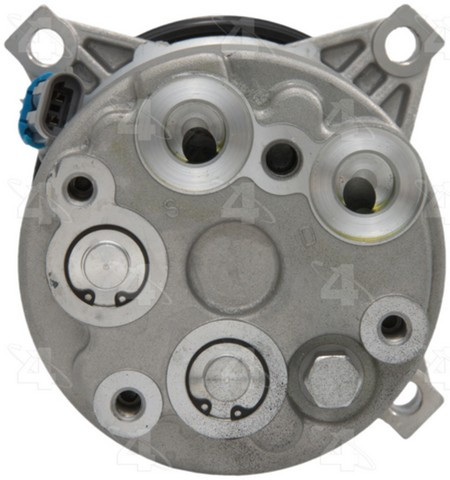

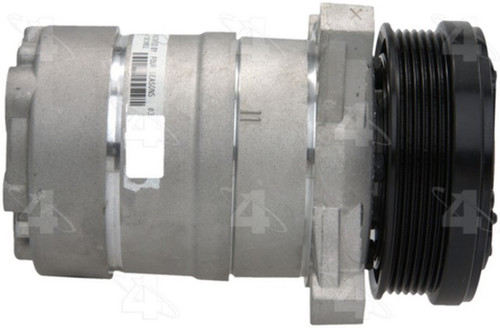

Four Seasons 88956 A/C compressor for the 1993-2002 Cadillac Eldorado and other vehicles circulates refrigerant through the A/C system. The GM HD6 design has 10 cylinders and 210 CC of displacement, against 170 CC for a 6-cylinder compressor, and is more efficient and quieter.
- Clutch included, with a 6-groove pulley for a serpentine belt
- Dowel pins in the case to prevent case twisting and leaks
- Four Seasons compressor validated for performance equivalent to 100,000 miles
- Each compressor is vacuum, pressure and helium mass spectrometer tested for leaks
- Works with R134a or R1234yf refrigerant systems
Quick facts
- Part: Four Seasons 88956 A/C compressor
- Fits: the 1993-2002 Cadillac Eldorado and other vehicles
- Condition: New
A clutch that will not engage, grinding or squealing from the compressor, or air that stays warm can mean the compressor is worn. Low refrigerant, a leaking line or a slipping belt can produce these too, so with the engine off, look over the belt and the fittings for oily residue or damage before replacing the compressor.
Fits
As a direct-fit A/C compressor that meets OE specifications, it covers the 1993-2002 Cadillac Eldorado, the 1998-2000 Isuzu Trooper and the 1999-2000 Isuzu Vehicross, along with other vehicles. Driving something else? Look up your year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside pulley diameter: 5.000 in
- Pulley grooves: 6, serpentine belt
- Outlet C length: 127 mm
- Mounting type: Type XII (all ears without threads)
- Coil clock position: 2
Build and materials
- Compressor type: GM HD6
- Condition: New
- Clutch: included
- Coil voltage: 12 V DC
- Connector type: pin
- Refrigerant oil: PAG 46
- High-pressure switch: not included
- Country of origin: Mexico
In the box
One A/C compressor with its clutch and two sealing washers (24354). This listing is one compressor, and each vehicle takes one. Mounting hardware is not included; the old bolts may not be reusable, so plan on new ones.
Installation notes
- Pre-charged with 3 ounces of PAG oil, which reduces install time.
Interchange: C376 · C379 · 1521925 · 19193989 · 281233 · 628177 · 11188956 · 1136403 · 19188309 · 19192528 · 707036P · AC1707036P · 6511343 · A01233 · 7410473 · WMO1464LB
This part cross-references / interchanges with the following part numbers:
C376, C379, 1521925, 19193989, 281233, 628177, 11188956, 88956, 1136403, 19188309, 19192528, 707036P, AC1707036P, 6511343, A01233, 7410473, WMO1464LB
Frequently Asked Questions
Is Four Seasons 88956 an ac compressor for the 1998-2000 Isuzu Trooper?
Yes, Four Seasons 88956 fits the 1998-2000 Isuzu Trooper. For a different vehicle, check your year and model in the "Vehicles it fits" section.
Does this Four Seasons ac compressor come pre-charged with oil?
Yes, it is pre-charged with 3 ounces of PAG oil; mounting hardware and the high-pressure switch are not included.
Can this A/C compressor be used with R1234yf as well as R134a?
Yes. Four Seasons 88956 is compatible with R134a or R1234yf systems, and the compatible refrigerant oil is PAG 46.
What are signs a GM HD6 A/C compressor is wearing out?
Grinding or squealing, a clutch that does not engage or air that stays warm can mean the compressor is worn. A shop can test the clutch and system pressures, since that needs the engine running.
What pulley does the 88956 compressor have?
It has a 6-groove pulley with a 5.000 in outside diameter, made for a serpentine belt. The clutch comes with the compressor.
