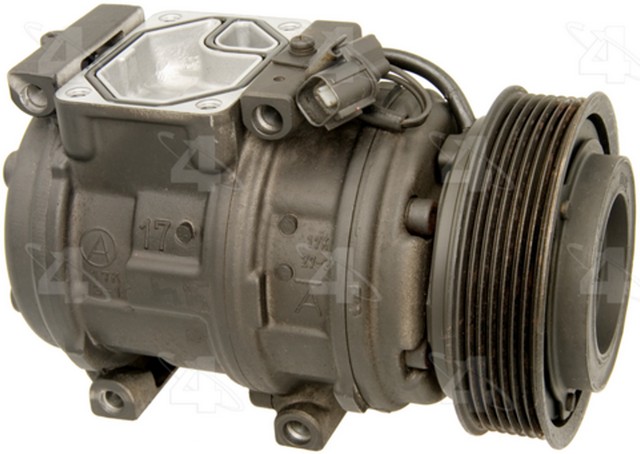

Four Seasons 97334 A/C compressor for the 1999-2005 Land Rover Range Rover and other vehicles is a remanufactured unit that circulates refrigerant through the A/C system. It is built on the Denso 10PA17C compressor.
- 100 percent tested for compressor function and noise level
- Pre-charged with 3 ounces of PAG oil for R134a or R1234yf applications
- Individually vacuum and pressure tested to check for leaks
- Clutch with a 12-volt DC coil
Quick facts
- Part: Four Seasons 97334 A/C compressor
- Fits: the 1999-2005 Land Rover Range Rover and other vehicles
- Condition: Remanufactured
Weak cooling, a noisy compressor or a clutch that no longer engages can mean the compressor is worn, though a faulty pressure switch or a leaking hose can be behind them too, so track down the cause first.
Fits
It fits the 1999-2005 Land Rover Range Rover and the 1999-2004 Land Rover Discovery. This listing is one compressor, and the 1999-2005 Land Rover Range Rover takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside pulley diameter: 4.750 in
- Pulley grooves: 7
- Outlet C length: 119 mm
- Mounting type: Tangent mount
- Connector type: Pin
- Coil voltage: 12 V DC
Build and materials
- Condition: Remanufactured
- Compressor type: Denso 10PA17C
- Pulley belt type: Serpentine
- Refrigerant type: R134A
- Compatible refrigerant oil: PAG 46
- Clutch: included
- Country of origin: Mexico
In the box
One compressor with its clutch, plus the O-rings and sealing washers needed to install it, including compressor manifold gasket 24156. Mounting hardware and a switch are not included; the old bolts may not be reusable, so plan on new ones.
Installation notes
- May require use of the OE manifold.
Interchange: 254566 · DW97334 · 11197334 · 4710360 · 5512351 · A54566 · 140227C · JPB000110 · JPB101330 · LR012805 · CO11120RW
This part cross-references / interchanges with the following part numbers:
254566, DW97334, 11197334, 97334, 4710360, 5512351, A54566, 140227C, JPB000110, JPB101330, LR012805, CO11120RW
Frequently Asked Questions
Is this the right AC compressor for the 1999-2005 Land Rover Range Rover?
Yes, Four Seasons 97334 fits the 1999-2005 Land Rover Range Rover and the 1999-2004 Land Rover Discovery, with one compressor per vehicle.
Does this Four Seasons AC compressor come with oil?
Yes, Four Seasons 97334 comes pre-charged with 3 ounces of PAG oil for R134a or R1234yf applications. The O-rings and sealing washers needed to install it are included too.
Are Four Seasons remanufactured AC compressors like this one tested for leaks?
Yes, this remanufactured compressor is individually vacuum and pressure tested for leaks, and it is also 100 percent tested for function and noise level.
How many pulley grooves does this Four Seasons compressor have?
Four Seasons 97334 has a 7-groove serpentine-belt pulley with a 4.750 in outside diameter.
Does this compressor need the OE manifold?
Four Seasons 97334 may require use of the OE manifold. Mounting hardware and a switch are not included with this compressor.
