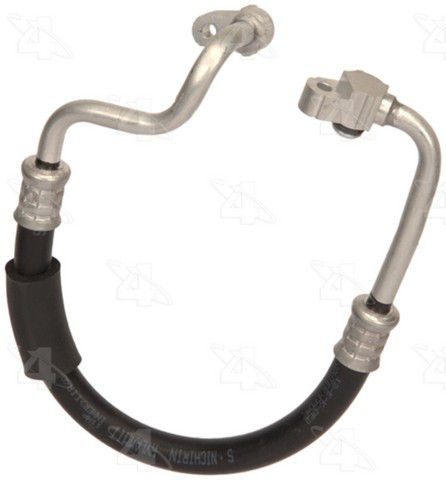

Four Seasons 55286 A/C refrigerant discharge hose for the 1996-2004 Acura RL V6 3.5L carries refrigerant on the high-pressure side of the A/C system.
- Double wall barrier hose compatible with R1234YF, R134A or R12
- Crimp fitting connection with a P-Nut fitting on each end
- Muffler on the hose assembly
- Application specific design
- Gaskets, o-rings or seals supplied for the replacement
Quick facts
- Part: Four Seasons 55286 A/C refrigerant discharge hose
- Fits: 1996-2004 Acura RL V6 3.5L
- Material: aluminum and rubber
- Condition: New
Oily residue around the hose or fittings, a loss of refrigerant, or warm air from the vents can mean a discharge hose is leaking. Before you replace the hose, rule out a leaking compressor, condenser or o-ring, since any of them can also leave the A/C blowing warm; a shop can test the system with the right equipment.
Fits
This hose is a direct-fit replacement for the 1996-2004 Acura RL V6 3.5L. The car takes one hose in this line, and this listing is a single hose.
Specifications
Fit and size
- Quantity per vehicle: 1

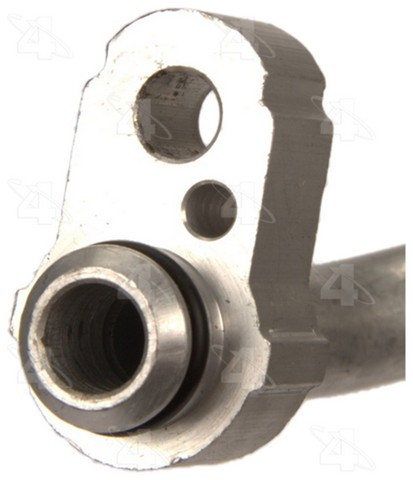

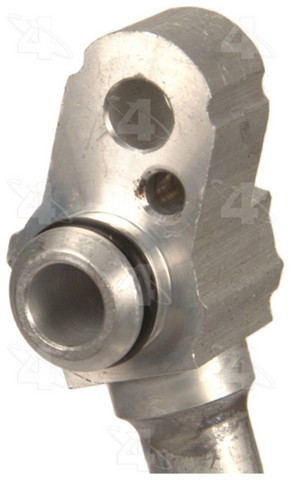

- End 1 type: P-Nut fitting
- End 2 type: P-Nut fitting
- Muffler: included
- Bracket: not included
- O-rings: 2 (number 24661)
Build and materials
- Material: aluminum and rubber
- Hose construction: double wall barrier
- Connection: crimp fitting
- Refrigerant type: R134A
- Condition: New
- Country of origin: China
In the box
One discharge hose assembly with its muffler and two O-rings. A bracket and a service port are not included.
Interchange: 80315SZ3A01 · CWK787302 · 200354 · 787302 · 11155286 · 802990 · A70301 · T55286 · HA11306 · HA11306C
This part cross-references / interchanges with the following part numbers:
80315SZ3A01, CWK787302, 200354, 787302, 11155286, 55286, 802990, A70301, T55286, HA11306, HA11306C
Frequently Asked Questions
Is the Four Seasons 55286 discharge hose right for a 1996-2004 Acura RL V6 3.5L?
Yes. Four Seasons 55286 is listed for the 1996-2004 Acura RL V6 3.5L, which takes one hose in this line.
Does the Four Seasons 55286 hose come with O-rings, a bracket or a service port?
Four Seasons 55286 comes with two O-rings (number 24661) and has a muffler on the assembly. A bracket and a service port are not included.
Which refrigerants is this discharge hose made for?
The double wall barrier hose is compatible with R1234YF, R134A or R12, and the refrigerant type for this hose is R134A.
How can I tell if my A/C discharge hose is leaking?
Oily residue near the hose or its fittings, lost refrigerant or warm air from the vents can be signs. Look only with the engine off and cool, and leave pressure testing to a shop.
Is HA11306 the same as Four Seasons 55286?
HA11306 is on the interchange list for Four Seasons 55286, along with 802990, 787302 and the other numbers on the Interchange line.
