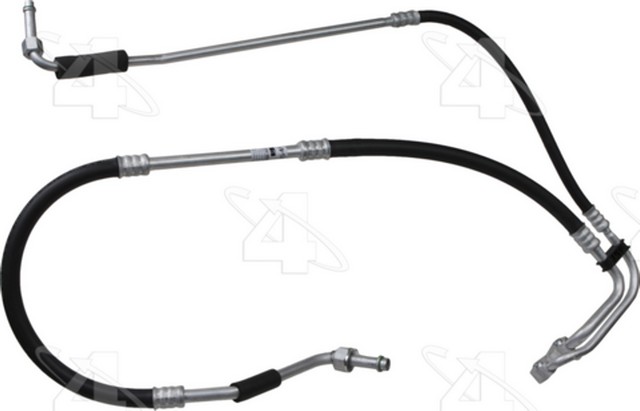

Four Seasons 55497 A/C manifold hose for the 1987-1989 Chevrolet Camaro V6 2.8L, the 1990-1991 Camaro V6 3.1L and other vehicles carries refrigerant on the discharge and suction sides of the A/C system. It is a discharge and suction line hose assembly, also called an AC manifold hose assembly.
- Gaskets, o-rings or seals included for a proper replacement
- Double wall barrier hose for R1234YF, R134A or R12 refrigerant
- Crimp fitting connection
- Application-specific design
Quick facts
- Part: Four Seasons 55497 A/C manifold hose
- Also called: AC manifold hose assembly
- Fits: the 1987-1989 Chevrolet Camaro V6 2.8L, the 1990-1991 Camaro V6 3.1L and other vehicles
- Material: Aluminum / Rubber
- Condition: New
Oily residue at the fittings, a cracked or chafed hose, or an A/C that has stopped cooling can mean this hose is leaking, though a worn compressor or a clogged condenser can be behind a warm A/C as well, so find the cause before replacing it.
Fits
It is a direct-fit replacement for the 1987-1989 Chevrolet Camaro V6 2.8L and the 1990-1991 Camaro V6 3.1L, and for the 1987-1989 Pontiac Firebird V6 2.8L and the 1990-1991 Firebird V6 3.1L, with one hose per car.
Specifications
Fit and size
- Quantity per vehicle: 1
- Suction end style: UNF O-ring
- Discharge end style: UNF O-ring
- End types: female O-ring on both ends
Build and materials
- Type: discharge and suction line
- Construction: double wall barrier hose, crimp fitting connection
- Material: Aluminum / Rubber
- Condition: New
- Country of origin: China
In the box
One A/C manifold hose with four o-rings: one 24608, one 24612 and two 24648. Fittings, a service port, a bracket and a muffler are not included.
Interchange: 1530010 · 153599 · 51617 · CWK781206 · 200865 · AC5391 · T55497 · 3781206 · 781206 · XH323 · 11155497 · 10054997 · 10069168 · 10070217 · 704794 · A9228 · 34859 · 247323 · 1930010 · 06396
This part cross-references / interchanges with the following part numbers:
1530010, 153599, 51617, CWK781206, 200865, AC5391, T55497, 3781206, 781206, XH323, 11155497, 55497, 10054997, 10069168, 10070217, 704794, A9228, 34859, 247323, 1930010, 06396
Frequently Asked Questions
Does the Four Seasons 55497 hose fit the 1987-1989 Pontiac Firebird V6 2.8L?
Yes. Four Seasons 55497 fits the 1987-1989 Pontiac Firebird V6 2.8L and the 1990-1991 Firebird V6 3.1L, and the car takes one hose.
Does this A/C manifold hose come with o-rings?
Yes. It comes with four o-rings: one 24608, one 24612 and two 24648. Fittings, a service port, a bracket and a muffler are not included.
Which refrigerants work with the Four Seasons 55497 hose?
The Four Seasons 55497 double wall barrier hose is compatible with R1234YF, R134A or R12.
How can I tell if this A/C manifold hose is leaking?
With the engine off and cool, look for oily residue at the fittings or a cracked or chafed hose. A shop can pressure-test the system to confirm a leak.
What end connections does this A/C manifold hose have?
Both ends are female O-ring, and the suction and discharge end style is UNF O-ring. The hose uses a crimp fitting connection.
