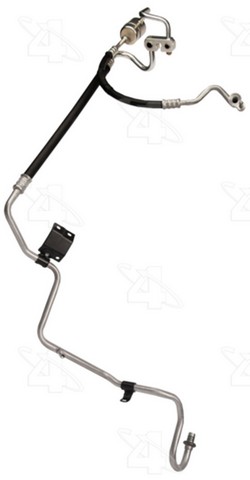

Four Seasons 56050 A/C manifold hose for the 2001-2004 Ford Escape 4-cylinder 2.0L and other vehicles carries refrigerant to and from the A/C compressor. This AC manifold hose assembly combines the discharge line and the suction line in one assembly.
- Engineered and tested to give years of trouble-free operation
- O-rings and seals included to properly replace the hose assembly
- Double wall barrier hose compatible with R134A refrigerant
- Crimp fitting connection on the hose assembly
- Application-specific design with a P-nut fitting on the suction end and a male springlock on the discharge end
Quick facts
- Part: Four Seasons 56050 A/C manifold hose
- Also called: AC manifold hose assembly
- Fits: 2001-2004 Ford Escape 4-cylinder 2.0L and other vehicles
- Material: Aluminum and rubber
Warm air from the vents, oily residue around a crimp or fitting, or a cracked or chafed hose can mean the A/C manifold hose is leaking. Those signs alone do not prove the hose is at fault, because a leaking condenser can also let refrigerant escape, so find the cause before replacing it. A shop can leak-test the A/C system.
Fits
It fits the 2001-2004 Ford Escape 4-cylinder 2.0L and the 2001-2004 Mazda Tribute 4-cylinder 2.0L, and either one takes a single hose.
Specifications
Fit and size
- Suction end: P-nut fitting
- Discharge end: male springlock
- Refrigerant type: R134A
- Quantity per vehicle: 1
Build and materials
- Type: discharge and suction line
- Material: aluminum and rubber
- Hose: double wall barrier hose
- Connection: crimp fitting
- Country of origin: China
In the box
One A/C manifold hose with its bracket and service port, one 24220 spring, one 24649 O-ring and three 24670 O-rings. The hose has no muffler, and separate fittings are not included.
Interchange: 201185 · T56050 · 781435 · YL8Z19D850AA · 607147 · 4811848 · EC0161460E · EC0161460F · EC0161460G · EC0161460H · EC0161460J · YF2693 · A70613 · HA10673 · HA10673C
This part cross-references / interchanges with the following part numbers:
201185, T56050, 781435, 56050, YL8Z19D850AA, 607147, 4811848, EC0161460E, EC0161460F, EC0161460G, EC0161460H, EC0161460J, YF2693, A70613, HA10673, HA10673C
Frequently Asked Questions
Will the Four Seasons 56050 fit a 2001-2004 Mazda Tribute 4-cylinder 2.0L?
Yes. Four Seasons 56050 fits the 2001-2004 Mazda Tribute 4-cylinder 2.0L and the 2001-2004 Ford Escape 4-cylinder 2.0L, and each takes one hose.
Which O-rings come with the Four Seasons 56050 A/C manifold hose?
Four Seasons 56050 comes with one 24220 spring, one 24649 O-ring and three 24670 O-rings. Separate fittings are not included.
What end fittings are on this A/C manifold hose?
The suction end has a P-nut fitting and the discharge end has a male springlock, and the hose uses a crimp fitting connection.
Could an oily spot on my A/C manifold hose mean a leak?
Yes. Oily residue at a crimp or fitting can mean refrigerant is escaping from this A/C manifold hose, as can warm air from the vents or a cracked or chafed hose.
Does this A/C manifold hose have a service port?
Yes. This A/C manifold hose includes a service port and its bracket; it has no switch service port and no muffler.
