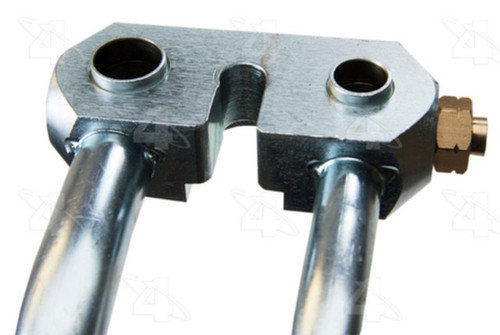

Four Seasons 56059 A/C manifold hose for the 2002-2003 Ford F-150 V8 5.4L and other vehicles carries refrigerant through the discharge and suction lines of the A/C system.
- Gaskets, o-rings or seals included for replacement
- Double wall barrier hose compatible with R1234YF, R134A or R12
- Crimp fitting connection
- Application specific design
- Bracket and muffler included
Quick facts
- Part: Four Seasons 56059 A/C manifold hose
- Also called: AC manifold hose assembly
- Fits: 2002-2003 Ford F-150 V8 5.4L and other vehicles
- Material: Aluminum / Rubber
- Condition: New
Oily residue at a fitting, cracks in the rubber or weak cooling can mean the hose is failing. Before you replace it, rule out a low refrigerant charge, a worn o-ring at another connection and a compressor problem, since each can also leave the vents warm.
Fits
It is a direct-fit replacement for the 2002-2003 Ford F-150 V8 5.4L, the 2004 Ford F-150 Heritage V8 5.4L and the 2002-2003 Ford Lobo V8 5.4L. This listing is one hose, and the 2002-2003 Ford F-150 V8 5.4L takes one, as do the others.
Specifications
Fit and size
- Quantity per vehicle: 1
- Suction end style: P-Nut fitting

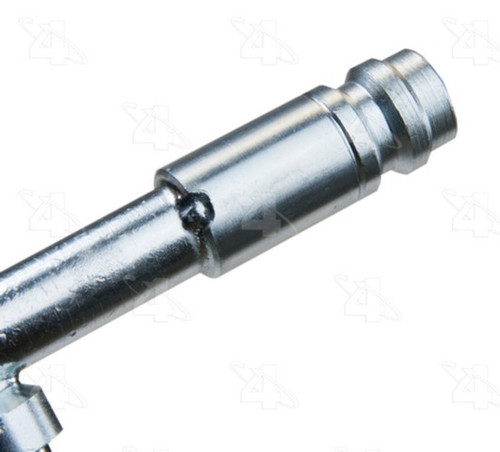

- Discharge end style: Male insert O-ring
- Refrigerant type: R134A
Build and materials
- Type: Discharge & suction line
- Material: Aluminum / Rubber
- Bracket: included

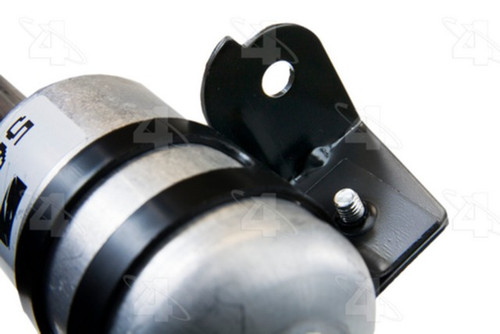

- Muffler: included

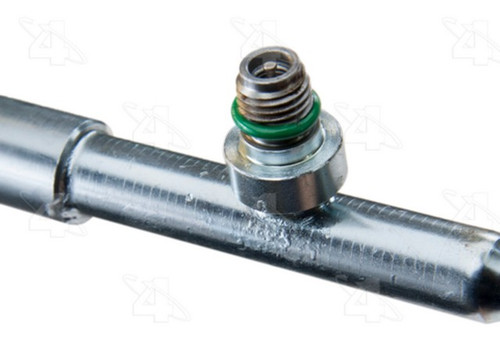

- Service port: included
- Condition: New
- Country of origin: China
In the box
One A/C manifold hose with its bracket, muffler and service port, plus one O-ring 24608 and one O-ring 24622. Fittings are not included.
Interchange: 201194 · T56059 · 781438 · 2L3Z19D850AA · 2L3Z19D850EA · BU2Z19D850J · JU2Z19D850H · 607150 · YF2804 · YF2851 · YF38044 · A70622 · HA113420SAC
This part cross-references / interchanges with the following part numbers:
201194, T56059, 781438, 56059, 2L3Z19D850AA, 2L3Z19D850EA, BU2Z19D850J, JU2Z19D850H, 607150, YF2804, YF2851, YF38044, A70622, HA113420SAC
Frequently Asked Questions
Is the Four Seasons 56059 hose right for a 2004 Ford F-150 Heritage V8 5.4L?
Yes. Four Seasons 56059 fits the 2004 Ford F-150 Heritage V8 5.4L, and it also fits the 2002-2003 Ford F-150 V8 5.4L.
Does the 56059 hose come with O-rings and fittings?
Four Seasons 56059 comes with a bracket, muffler, service port and two O-rings, numbers 24608 and 24622. Fittings are not included.
Can this AC manifold hose assembly be used with R1234YF refrigerant?
Yes. The double wall barrier hose is compatible with R1234YF, R134A or R12.
How can I tell if this A/C hose is leaking?
With the engine off, look for oily residue around the fittings and for cracks or swelling in the rubber. Weak cooling can also be a sign, and a shop can leak-test the system.
Does the 56059 replace part number 2L3Z19D850AA?
Yes. 2L3Z19D850AA is among the numbers on this hose's Interchange line, along with BU2Z19D850J and 607150.
