Four Seasons 56360 A/C manifold hose for the 2002-2005 Ford Taurus V6 3.0L and other vehicles carries refrigerant between the A/C components. This discharge and suction line hose assembly is also called an AC manifold hose assembly.
- Double wall barrier hose built for R1234YF, R134A or R12 refrigerant
- Crimp fitting connection

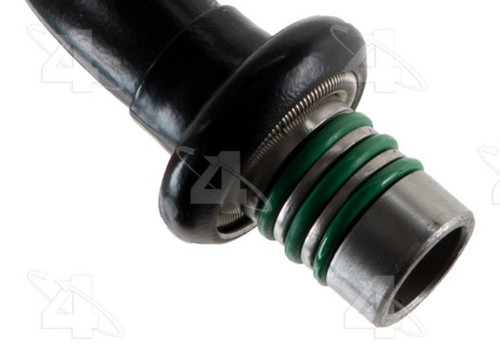

- Male springlock suction end and P-nut fitting discharge end
- Gaskets, o-rings or seals included for a proper replacement
- Muffler and service port included
- Application specific design
Quick facts
- Part: Four Seasons 56360 A/C manifold hose
- Also called: AC manifold hose assembly
- Fits: 2002-2005 Ford Taurus V6 3.0L and other vehicles
- Material: Aluminum / Rubber
- Condition: New
A refrigerant leak at a hose or fitting, oily residue near the connections, or A/C that blows warm air can mean this hose assembly has failed. A leaking compressor or condenser, or a low refrigerant charge, can be behind these signs too, so find the cause before buying a new hose.
Fits
It fits the 2002-2005 Ford Taurus V6 3.0L and the 2002-2005 Mercury Sable V6 3.0L; each takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Suction end: male springlock
- Discharge end: P-nut fitting
- Muffler: included
- Service port: included
Build and materials
- Type: discharge and suction line hose assembly
- Material: Aluminum / Rubber
- Refrigerant type: R134A
- Hose: double wall barrier
- Connection: crimp fitting
- Condition: New
- Country of origin: China
In the box
One A/C manifold hose with its sealing parts: o-ring 24649 (1), o-ring 24670 (3), o-ring 24606 (1) and spring 24220 (1). Fittings and a bracket are not included.
Interchange: 201330 · T56360 · 781453 · 2F1Z19D734BA · JU2Z19D734F · 607473 · 4812058 · YF2853 · A70860 · 3464421 · HA111580 · HA111580C
This part cross-references / interchanges with the following part numbers:
201330, T56360, 781453, 56360, 2F1Z19D734BA, JU2Z19D734F, 607473, 4812058, YF2853, A70860, 3464421, HA111580, HA111580C
Frequently Asked Questions
Is the Four Seasons 56360 hose right for a 2002-2005 Mercury Sable V6 3.0L?
Yes. Four Seasons 56360 fits the 2002-2005 Mercury Sable V6 3.0L and the 2002-2005 Ford Taurus V6 3.0L, and each takes one.
Does the 56360 A/C manifold hose come with o-rings and a muffler?
Yes. Four Seasons 56360 includes gaskets, o-rings or seals, a muffler and a service port. Fittings and a bracket are not included.
Can this A/C manifold hose be used with R1234YF refrigerant?
Yes. The double wall barrier hose is compatible with R1234YF, R134A or R12, and the listed refrigerant type is R134A.
What ends does the Four Seasons 56360 hose have?
The suction end is a male springlock and the discharge end is a P-nut fitting. Four Seasons 56360 uses a crimp fitting connection.
How can I spot a leaking A/C manifold hose?
With the engine off and cool, look for oily residue, wet spots or cracks along the hose and at its connections. A shop can leak-test the A/C system.
