Four Seasons 56794 A/C manifold hose for the 1997-1998 Jeep Wrangler 6-cylinder 4.0L and other vehicles carries refrigerant to and from the A/C compressor. The discharge line and the suction line are both built into this one hose.
- A/C manifold hose engineered and tested for years of trouble-free operation
- Double wall barrier hose compatible with R1234YF, R134A or R12
- Crimp fitting connection on the A/C manifold hose
- Application-specific design

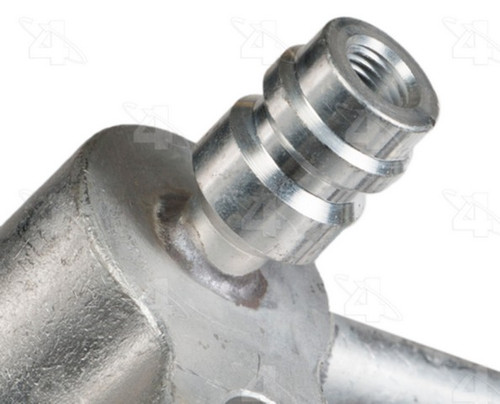

- Switch service port included on the A/C manifold hose
Quick facts
- Part: Four Seasons 56794 A/C manifold hose
- Also called: AC manifold hose assembly
- Fits: 1997-1998 Jeep Wrangler 6-cylinder 4.0L and other vehicles
- Material: Aluminum and rubber
- Condition: New
Refrigerant escaping from this hose can show up as an oily film on the rubber or around the crimps, cracked or rubbed-through hose, or vent air that slowly turns warm. Those signs alone do not prove the hose has failed, because a leaking condenser can let refrigerant out too. A shop can test the A/C system to find where it is leaking.
Fits
It fits the 1997-1998 Jeep Wrangler 6-cylinder 4.0L and the 1997-1998 Jeep TJ 6-cylinder 4.0L. This listing is one A/C manifold hose, and each Jeep takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Suction end: Female springlock
- Discharge end: Male springlock
Build and materials
- Type: Discharge and suction line
- Material: Aluminum and rubber
- Refrigerant type: R134A
- Condition: New
- Country of origin: China
In the box
One A/C manifold hose with its bracket, two 24668 O-rings, two 24670 O-rings, one 24606 O-ring and two 24354 sealing washers. The hose comes without a muffler, and fittings are not included.
Interchange: 1534014 · CWK781131 · 282579 · 5183836AA · 55036299AB · 3781131 · 781131 · 11156794 · 19192005 · 304711 · 4811797 · A72579 · 3463896 · T56794 · HA11442 · HA11442C
This part cross-references / interchanges with the following part numbers:
1534014, CWK781131, 282579, 5183836AA, 55036299AB, 3781131, 781131, 11156794, 56794, 19192005, 304711, 4811797, A72579, 3463896, T56794, HA11442, HA11442C
Frequently Asked Questions
Does the Four Seasons 56794 fit a 1997-1998 Jeep TJ 6-cylinder 4.0L?
Yes. The Four Seasons 56794 A/C manifold hose fits the 1997-1998 Jeep TJ 6-cylinder 4.0L and the 1997-1998 Jeep Wrangler 6-cylinder 4.0L, and each takes one.
Does this AC manifold hose assembly come with O-rings?
Yes. This A/C manifold hose comes with two 24668 O-rings, two 24670 O-rings, one 24606 O-ring and two 24354 sealing washers, plus its bracket; fittings are not included.
What refrigerant is the 56794 hose made for?
The Four Seasons 56794 A/C manifold hose is listed for R134A refrigerant, and its double wall barrier hose is compatible with R1234YF, R134A or R12.
How can a leak in an A/C manifold hose show up?
A leaking A/C manifold hose can leave oily residue on the rubber or crimped fittings, show cracked or chafed hose, or let the A/C blow warmer air than it should.
What springlock ends does this A/C manifold hose have?
This A/C manifold hose has a female springlock on the suction end and a male springlock on the discharge end.
