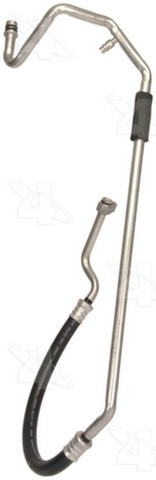

Four Seasons 55173 A/C refrigerant suction hose for the 2006 Toyota Camry 4-cylinder 2.4L, V6 3.0L or 3.3L and other vehicles carries refrigerant from the evaporator to the compressor on the low-pressure side of the A/C system.
- Double wall barrier hose for R1234YF, R134A or R12 refrigerant
- Crimp fitting connection, with a P-Nut fitting on one end and a flange on the other
- Application specific design
- Service port included on the hose assembly
Quick facts
- Part: Four Seasons 55173 A/C refrigerant suction hose
- Fits: the 2006 Toyota Camry 4-cylinder 2.4L, V6 3.0L or 3.3L and other vehicles
- Material: Aluminum / Rubber
- Condition: New
A leaking suction hose can show up as oily residue at the fittings, a cracked, chafed or swollen hose, or A/C that blows warm. Warm air has other causes too, so find the cause before replacing the hose. With the engine off, look the hose and both fittings over for oil stains, cracks and rubbed spots; a shop can test the system itself.
Fits
This hose is a direct-fit replacement for the 2006 Toyota Camry 4-cylinder 2.4L, V6 3.0L or 3.3L and the 2004-2008 Toyota Solara 4-cylinder 2.4L.
Specifications
Fit and size
- Quantity per vehicle: 1
- End 1 type: P-Nut fitting

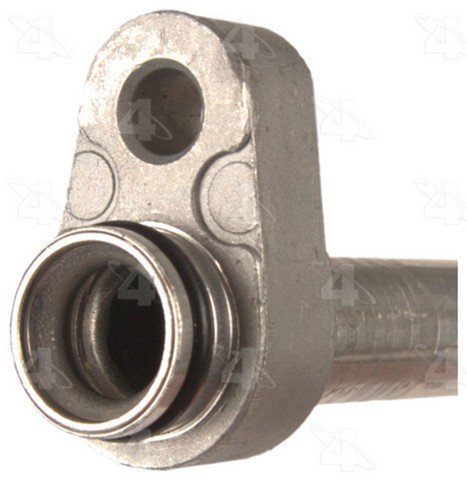

- End 2 type: Flange

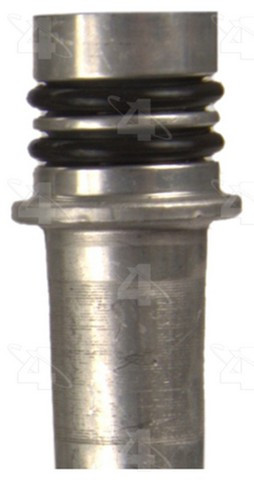

- O-ring A: quantity 2, number 24150
- Bracket: not included
- Muffler: not included
Build and materials
- Type: suction line hose assembly
- Material: Aluminum / Rubber
- Hose construction: double wall barrier
- Refrigerant type: R134A
- Service port: included
- Gaskets or seals: included
- Condition: New
- Country of origin: China
In the box
One A/C refrigerant suction hose with two O-rings (24150) and gaskets or seals. A bracket and a muffler are not included. The listing holds one hose, which is the quantity both cars need.
Interchange: CWK785258 · 200200 · 3785258 · 785258 · 11155173 · 802834 · A70201 · 571077 · 8871206060 · HA11077C · HA111374C
This part cross-references / interchanges with the following part numbers:
CWK785258, 200200, 3785258, 785258, 11155173, 55173, 802834, A70201, 571077, 8871206060, HA11077C, HA111374C
Frequently Asked Questions
Does the Four Seasons 55173 suction hose fit the 2004-2008 Toyota Solara 4-cylinder 2.4L?
Yes. Four Seasons 55173 fits the 2004-2008 Toyota Solara 4-cylinder 2.4L, and also the 2006 Toyota Camry 4-cylinder 2.4L, V6 3.0L or 3.3L.
Does this A/C refrigerant suction hose come with O-rings?
Yes. Four Seasons 55173 comes with two O-rings (number 24150) and gaskets or seals. It does not include a bracket or a muffler.
Which refrigerant does this suction hose work with?
The refrigerant type is R134A, and the double wall barrier hose is compatible with R1234YF, R134A or R12.
What kind of end fittings does this suction hose have?
One end has a P-Nut fitting and the other end is a flange, joined to the hose by a crimp fitting connection. A service port is included on the assembly.
How can I tell if my A/C suction hose is leaking?
With the engine off, look over the hose and fittings for oily residue, cracks or chafed spots, which can point to a leak. A shop can pressure-test the system.
