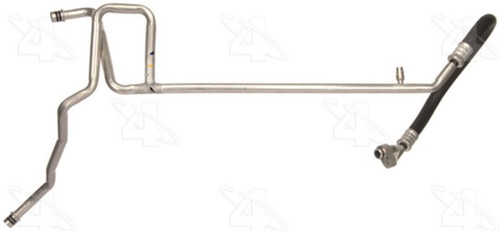

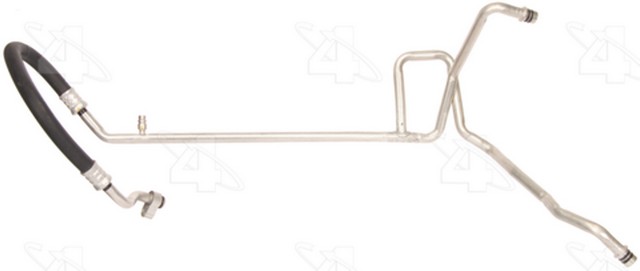

Four Seasons 55179 A/C refrigerant suction hose for the 2004-2006 Toyota Sienna V6 3.3L carries refrigerant on the low-pressure side of the A/C system. It replaces the suction line hose assembly.
- Double-wall barrier hose rated for R1234YF, R134A and R12 refrigerant
- Crimp fitting connection with a P-nut fitting on one end and a flange on the other
- Application-specific design
- Gaskets, O-rings or seals included for the replacement
- Service port included
Quick facts
- Part: Four Seasons 55179 A/C refrigerant suction hose
- Fits: 2004-2006 Toyota Sienna V6 3.3L
- Material: Aluminum / Rubber
- Condition: New
A refrigerant leak, oily residue at the fittings or weak cooling can mean the hose has worn out. A tired compressor, a restricted expansion device or a low refrigerant charge can also be behind weak cooling, so track down the cause before you buy a hose.
Fits
This hose is a direct-fit replacement for the 2004-2006 Toyota Sienna V6 3.3L.
Specifications
Fit and size
- Quantity per vehicle: 1

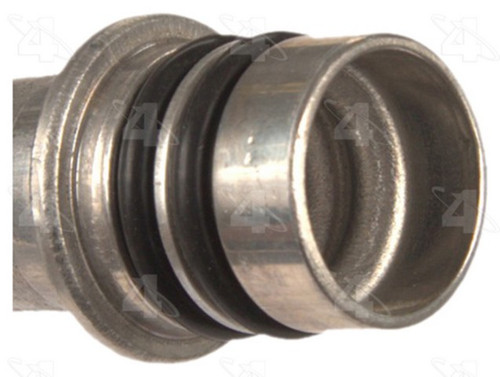

- End 1: P-nut fitting

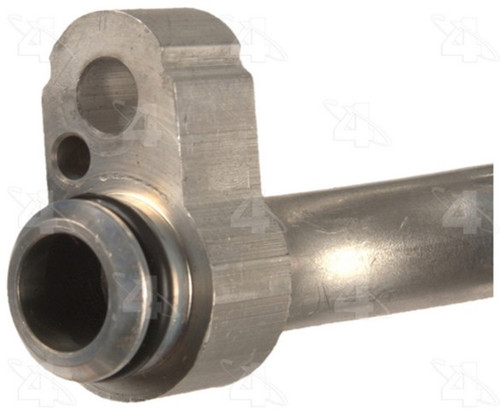

- End 2: Flange
- O-rings: 3 (O-ring number 24682)
Build and materials
- Material: Aluminum / Rubber
- Hose: double wall barrier hose
- Refrigerant type: R134A
- Connection: crimp fitting
- Condition: New
- Country of origin: China
In the box
One A/C refrigerant suction hose with its service port, three O-rings and the gaskets or seals for the replacement. No bracket or muffler is included. This listing is one hose, and the 2004-2006 Toyota Sienna V6 3.3L takes one.
Interchange: CWK785269 · 200211 · 3785269 · 785269 · 11155179 · 802837 · 4812205 · A70207 · 8870408130 · 8870408140 · HA11050C
This part cross-references / interchanges with the following part numbers:
CWK785269, 200211, 3785269, 785269, 11155179, 55179, 802837, 4812205, A70207, 8870408130, 8870408140, HA11050C
Frequently Asked Questions
Does the Four Seasons 55179 suction hose fit the 2004-2006 Toyota Sienna V6 3.3L?
Yes, Four Seasons 55179 is listed for the 2004-2006 Toyota Sienna V6 3.3L. This listing is one hose, and that vehicle takes one.
Does this A/C suction hose come with O-rings and a service port?
Yes. It includes three O-rings, the gaskets or seals for the replacement, and a service port. A bracket and a muffler are not included.
Is this A/C suction hose double-wall barrier hose, and which refrigerants does it work with?
Yes, it is double-wall barrier hose compatible with R1234YF, R134A or R12. The refrigerant type listed for this hose is R134A.
How can I tell if my A/C suction hose is leaking?
With the engine off and cool, look along the hose and at the crimped fittings for oily residue, cracks or damage. A shop can leak-test the system without you opening any A/C line.
What fittings does the Four Seasons 55179 suction hose have on its ends?
The Four Seasons 55179 has a P-nut fitting on one end and a flange on the other. The fittings are attached to the hose with a crimp connection.
