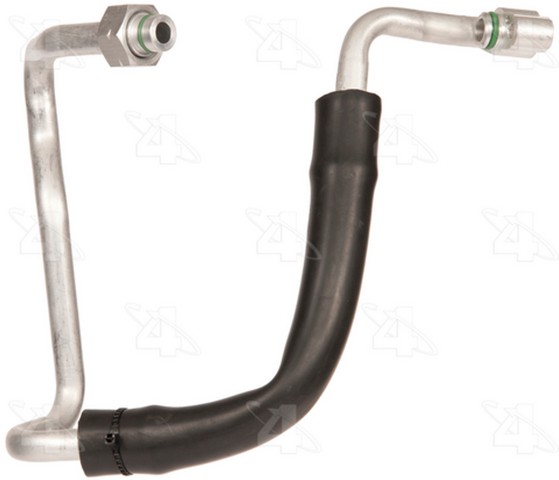

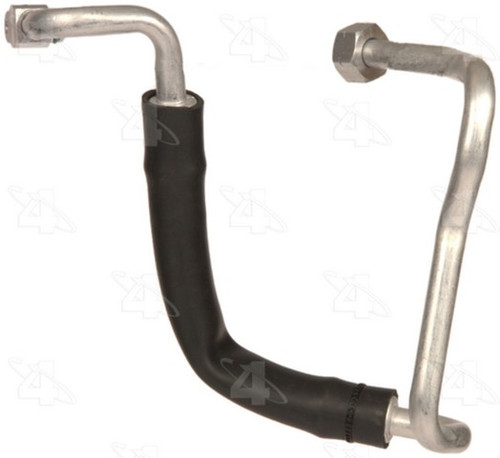

Four Seasons 55647 A/C refrigerant suction hose for the 1990-1994 Lexus LS400 V8 4.0L carries low-pressure refrigerant back to the compressor. This suction line hose assembly sits on the low-pressure side of the A/C system.
- Double wall barrier hose rated for R1234YF, R134A and R12 refrigerant
- Crimp fitting connection
- Application specific design
- Aluminum and rubber construction
- Gaskets, O-rings or seals included for installation
Quick facts
- Part: Four Seasons 55647 A/C refrigerant suction hose
- Fits: 1990-1994 Lexus LS400 V8 4.0L
- Material: Aluminum / Rubber
- Condition: New
A leaking or damaged suction hose can show up as weak cooling, oily residue at a fitting, or cracked, swollen or rubbed-through rubber you can see with the engine off and cool. These signs alone do not prove this hose is the problem, since a leaking condenser can produce them too. This listing is one hose, and the 1990-1994 Lexus LS400 V8 4.0L takes one.
Fits
This hose is a direct-fit replacement for the 1990-1994 Lexus LS400 V8 4.0L.
Specifications
Fit and size
- Quantity per vehicle: 1
- End 1 type: P-Nut fitting
- End 2 type: Female O-ring
- O-ring number: 24682
Build and materials
- Type: Hose assembly
- Material: Aluminum / Rubber
- Refrigerant type: R134A
- Connection: Crimp fitting
- Condition: New
- Country of origin: China
In the box
One suction hose with two O-rings. A bracket, muffler and service port are not included.
Interchange: CWK785372 · 200534 · T55647 · 785372 · 11155647 · 802913 · 8871250010 · 8871250060 · A70417 · HA112213
This part cross-references / interchanges with the following part numbers:
CWK785372, 200534, T55647, 785372, 11155647, 55647, 802913, 8871250010, 8871250060, A70417, HA112213
Frequently Asked Questions
Does the Four Seasons 55647 suction hose fit the 1990-1994 Lexus LS400 V8 4.0L?
Yes. Four Seasons 55647 is an application-specific suction hose for the 1990-1994 Lexus LS400 V8 4.0L, and that car takes one.
Are O-rings included with this A/C suction hose?
Yes. Four Seasons 55647 comes with two O-rings, number 24682. A bracket, muffler and service port are not included.
Which refrigerants is this suction hose compatible with?
This double wall barrier hose is compatible with R1234YF, R134A or R12. Its listed refrigerant type is R134A.

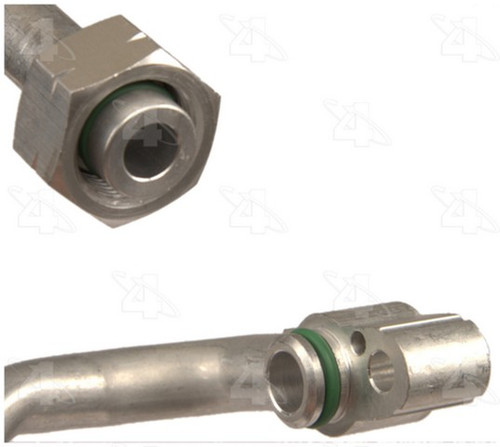

What fittings are on the ends of the 55647 hose?
One end has a P-Nut fitting and the other is a female O-ring end. The hose uses a crimp fitting connection.
How can I tell if my A/C suction hose is leaking?
With the engine off and cool, look for oily residue at the fittings or cracked, swollen rubber. A shop can leak-test the system, since opening A/C lines is not a driveway check.
