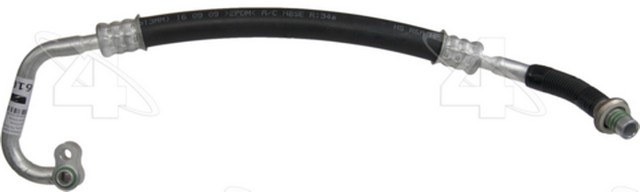

Four Seasons 56101 A/C refrigerant suction hose for the 1993-1997 Ford Probe V6 2.5L carries refrigerant back toward the compressor. As a suction line hose assembly, it sits on the low-pressure side of the A/C system.
- Double wall barrier hose for R1234YF, R134A or R12 refrigerant
- Crimp fitting connection
- Application specific design
- Springlock fitting on end 1 and P-nut fitting on end 2
- Gaskets, O-rings or seals included for the swap
Quick facts
- Part: Four Seasons 56101 A/C refrigerant suction hose
- Fits: 1993-1997 Ford Probe V6 2.5L
- Material: aluminum and rubber
- Condition: New
A leak at this hose can show up as oily residue at the hose or its fittings, visible damage to the hose, or an A/C that cools poorly. Before you replace this hose, rule out a low refrigerant charge or a leak at the compressor or another A/C line, since those can also leave the cooling weak. A shop can pressure-test the system.
Fits
This A/C refrigerant suction hose fits the 1993-1997 Ford Probe V6 2.5L.
Specifications
Fit and size
- Quantity per vehicle: 1
- End 1 type: springlock
- End 2 type: P-nut fitting
Build and materials
- Material: aluminum and rubber
- Connection: crimp fitting
- Refrigerant type: R134A
- Condition: New
- Country of origin: China
In the box
One A/C refrigerant suction hose with one 24608 O-ring, three 24670 O-rings and one 24220 spring. A bracket, muffler and service port are not included. This listing holds one hose, and the 1993-1997 Ford Probe V6 2.5L takes one.
Interchange: 1531591 · 286107 · CWK785147 · 282827 · T56101 · 3785147 · 785147 · 11156101 · F32Z19D742B · 19191721 · 88918272 · 607107 · 4811481 · YF1793 · A72827 · 3464034 · 34488 · 34631 · 193212 · HA112020C
This part cross-references / interchanges with the following part numbers:
1531591, 286107, CWK785147, 282827, T56101, 3785147, 785147, 11156101, 56101, F32Z19D742B, 19191721, 88918272, 607107, 4811481, YF1793, A72827, 3464034, 34488, 34631, 193212, HA112020C
Frequently Asked Questions
Is the Four Seasons 56101 A/C refrigerant suction hose right for a 1993-1997 Ford Probe V6 2.5L?
Yes. Four Seasons 56101 fits the 1993-1997 Ford Probe V6 2.5L, and the car takes one hose.
Do O-rings come with this A/C refrigerant suction hose?
Yes. This A/C refrigerant suction hose includes one 24608 O-ring, three 24670 O-rings and one 24220 spring. A bracket, muffler and service port are not included.
Which refrigerants is this double wall barrier hose compatible with?
The double wall barrier hose is compatible with R1234YF, R134A or R12. The refrigerant type is listed as R134A.
What fittings are on the ends of this A/C refrigerant suction hose?
Four Seasons 56101 has a springlock fitting on end 1 and a P-nut fitting on end 2. The hose uses a crimp fitting connection.
How can I tell if my A/C refrigerant suction hose is leaking?
Oily residue around the hose or its fittings, visible damage to the hose and weak cooling can all point to a leak. Have a shop test the system pressure rather than opening A/C lines yourself.
