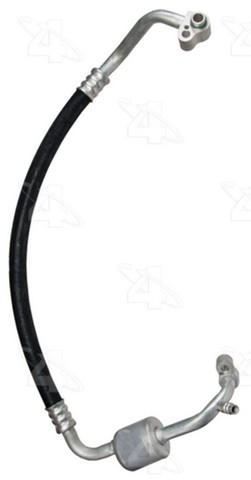

Four Seasons 56600 A/C refrigerant suction hose for the 1999-2000 Hyundai Elantra 4-cylinder 2.0L and other vehicles carries low-pressure refrigerant back to the A/C compressor.
- Double-wall barrier hose rated for R1234YF, R134A or R12
- Crimp fitting connection with a P-Nut fitting on each end
- Application-specific design
- Muffler built into the assembly, with a service port included
Quick facts
- Part: Four Seasons 56600 A/C refrigerant suction hose
- Fits: the 1999-2000 Hyundai Elantra 4-cylinder 2.0L and other vehicles
- Material: aluminum and rubber
- Condition: New
Weak cooling, oily residue at a fitting or a cracked, swollen hose can mean this hose is worn, though a weak compressor or a restricted condenser can be behind weak cooling too, so find the cause before you replace the hose.
Fits
It is a direct-fit replacement for the 1999-2000 Hyundai Elantra 4-cylinder 2.0L and the 1998-2001 Hyundai Tiburon 4-cylinder 2.0L, and each takes one hose. This listing is one hose.
Specifications
Fit and size
- Quantity per vehicle: 1
- End fittings: P-Nut fitting on both ends
- Bracket: not included
Build and materials
- Type: suction line hose assembly with muffler
- Material: aluminum and rubber
- Refrigerant type: R134A
- Condition: New
- Country of origin: China
In the box
One suction line hose assembly with two O-rings, number 24628. A bracket is not included, and an old bracket may not be reusable.
Interchange: 1533689 · CWK785134 · 282955 · 3785134 · 785134 · 11156600 · 19144890 · 19191918 · 802745 · 4812031 · 4812413 · 9776327300 · A72955 · 34402 · T56600 · HA10941 · HA10941C
This part cross-references / interchanges with the following part numbers:
1533689, CWK785134, 282955, 3785134, 785134, 11156600, 56600, 19144890, 19191918, 802745, 4812031, 4812413, 9776327300, A72955, 34402, T56600, HA10941, HA10941C
Frequently Asked Questions
Is the Four Seasons 56600 hose right for the 1998-2001 Hyundai Tiburon 4-cylinder 2.0L?
Yes. Four Seasons 56600 fits the 1998-2001 Hyundai Tiburon 4-cylinder 2.0L, and the 1999-2000 Hyundai Elantra 4-cylinder 2.0L takes it as well. Each takes one hose.
Does the Four Seasons 56600 suction hose come with O-rings?
Yes. Four Seasons 56600 comes with two O-rings, number 24628, and includes a muffler and a service port. A bracket is not included.
Can this suction hose be used with R1234YF as well as R134A?
Yes. The double-wall barrier hose is compatible with R1234YF, R134A or R12. The refrigerant type listed for this hose is R134A.
How can I tell if my A/C suction hose is leaking or damaged?
With the engine off and cool, look for oily residue at the fittings or a cracked, swollen or rubbed hose. A shop can leak-test the A/C system for you.
What end fittings does the Four Seasons 56600 suction hose have?
It has a P-Nut fitting on each end, joined to the hose with a crimp connection. The hose body is a double-wall barrier design.
