Four Seasons 56885 A/C refrigerant suction hose for the 2014-2016 Fiat 500L 4-cylinder 1.4L carries refrigerant on the low-pressure suction side of the A/C system. It is a suction line hose assembly with an application-specific design.
- Double wall barrier hose construction for R1234YF, R134A or R12 refrigerant
- Aluminum and rubber construction with a muffler

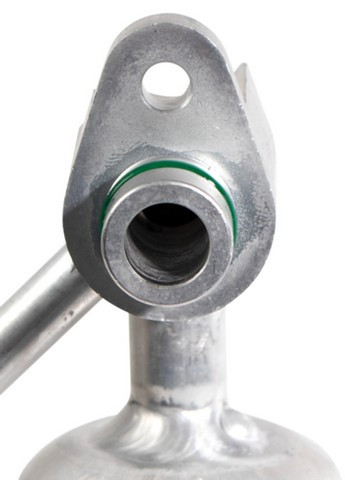

- Crimp fitting connection with an O-ring end and a P-nut fitting end
- Service port included on the assembly
Quick facts
- Part: Four Seasons 56885 A/C refrigerant suction hose
- Fits: 2014-2016 Fiat 500L 4-cylinder 1.4L
- Material: Aluminum / Rubber
- Condition: New
Weak cooling, or an oily film, cracks or rubbing marks on the hose and its fittings, can mean the hose is leaking. With the engine off, look along the hose for those marks first. Weak cooling can also start elsewhere in the A/C system, so find the cause before replacing the hose.
Fits
This hose fits the 2014-2016 Fiat 500L 4-cylinder 1.4L (L4-1.4L).
Specifications
Fit and size
- Quantity per vehicle: 1
- End 1 type: O-ring
- End 2 type: P-nut fitting
- Bracket: not included
Build and materials
- Material: aluminum and rubber
- Refrigerant type: R134A
- Connection: crimp fitting
- Muffler: included
- Service port: included
- Condition: New
- Country of origin: China
In the box
One A/C refrigerant suction hose with gaskets, o-rings or seals and a service port; the 2014-2016 Fiat 500L 4-cylinder 1.4L takes one. A bracket is not included.
Interchange: 68201912AA · 282387 · A82426 · HA111827C
This part cross-references / interchanges with the following part numbers:
68201912AA, 56885, 282387, A82426, HA111827C
Frequently Asked Questions
Does the Four Seasons 56885 suction hose fit the 2014-2016 Fiat 500L 4-cylinder 1.4L?
Yes. Four Seasons 56885 is listed for the 2014-2016 Fiat 500L 4-cylinder 1.4L (L4-1.4L), and that vehicle takes one hose.
Does this A/C suction hose come with O-rings or seals?
Yes. The assembly includes gaskets, o-rings or seals, plus a service port. A bracket is not included.
Is the Four Seasons 56885 hose compatible with R1234YF refrigerant?
Yes. Four Seasons 56885 is a double wall barrier hose compatible with R1234YF, R134A or R12.
How can I spot a leaking A/C suction hose?
Oily residue, cracks or rubbing marks on the hose or at its fittings can point to a leak, and you can look for them with the engine off. A shop can pressure-test the system.
What fittings does this crimp-fitting A/C hose have on each end?
End 1 is an O-ring type and end 2 is a P-nut fitting, joined to the hose by a crimp fitting connection. A service port is included on the assembly.
