A/C Suction and Liquid Line Hose Assembly for 2020-2025 Lincoln Corsair - Four Seasons 65252

Keep the A/C loop sealed and refrigerant moving with the Four Seasons A/C Suction and Liquid Line Hose Assembly 65252 — an application-specific unit that installs as a direct-fit replacement for the 2020-2025 Lincoln Corsair (L4-2.0L) and 2020-2022 Lincoln Corsair (L4-2.3L). This combined line, also known as an A/C suction line, carries low-pressure vapor back toward the compressor and high-pressure liquid toward the front of the system, with a built-in internal heat exchanger (IHX) running between the two lines.

• Construction: aluminum and rubber double-wall barrier hose, compatible with R1234YF, R134A or R12 refrigerant.

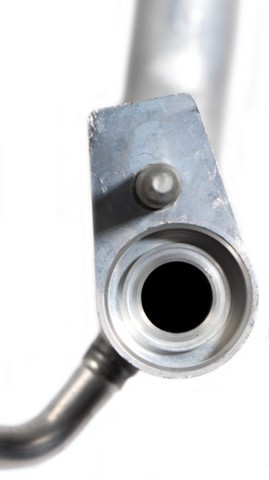

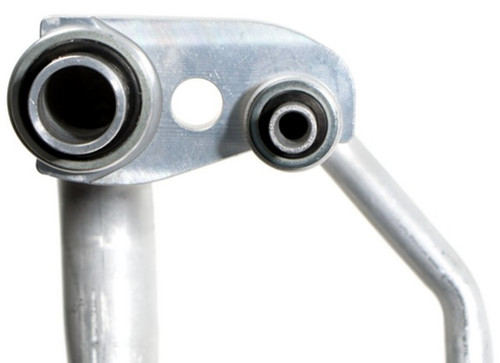

• Fittings: crimp fitting connections with a P-Nut fitting on one end and a flange on the other; service port included.
• Included seals: ships with the gaskets, O-rings, or seals needed to properly complete the replacement.
• Design: application-specific assembly; supplied without a bracket and without a muffler.

Backed by Four Seasons' decades of mobile A/C experience, this assembly is engineered and tested to serve as a clean replacement for a leaking or damaged original. Signs the original line may need replacing include refrigerant leaks, oily residue around the fittings or crimps, and weak A/C cooling once the system loses charge.

Interchange: LX6Z19A834AG · LX6Z19A834AN · LX6Z19A834BJ · LX6Z19A834C · YF38149 · YF38364 · YF38376 · YF38397 · 212547 · A66140
