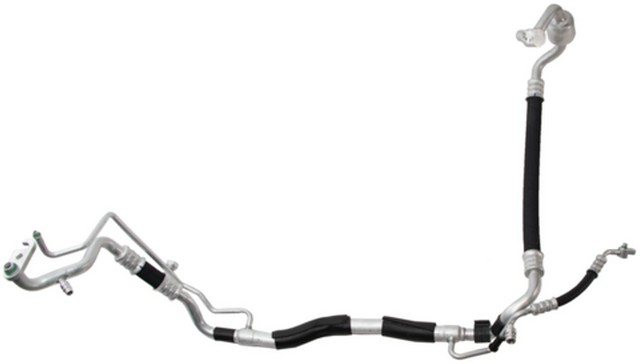

Four Seasons 66292 A/C suction and liquid line hose assembly for the 2016-2017 Kia Rio 4-cylinder 1.6L carries refrigerant through the suction and liquid lines as one internal heat exchange assembly.
- Gaskets, o-rings and seals come with the assembly
- Double wall barrier hose rated for R1234YF, R134A and R12 refrigerant
- Crimp fitting connection
- Application specific design

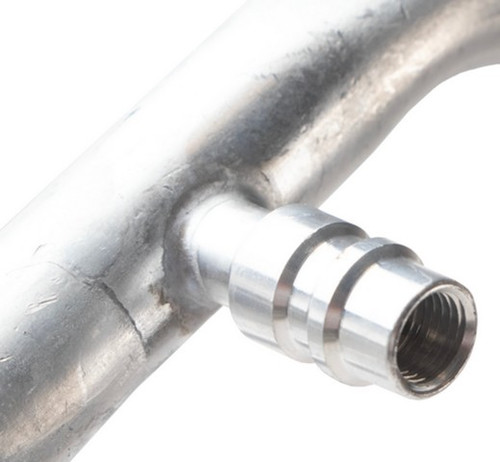

- Muffler and service port are part of the assembly
Quick facts
- Part: Four Seasons 66292 A/C suction and liquid line hose assembly
- Also called: A/C suction line
- Fits: 2016-2017 Kia Rio 4-cylinder 1.6L
- Material: Aluminum / Rubber
- Condition: New
Weak cooling, oily residue at a fitting or a damaged hose can mean the lines need replacing. Before you replace this hose assembly, rule out the compressor, the condenser and the other joints in the system, because a fault in any of them can also cause weak cooling.
Fits
This hose assembly is a direct-fit replacement for the 2016-2017 Kia Rio 4-cylinder 1.6L, which takes one. This listing is one assembly.
Specifications
Fit and size
- Quantity per vehicle: 1

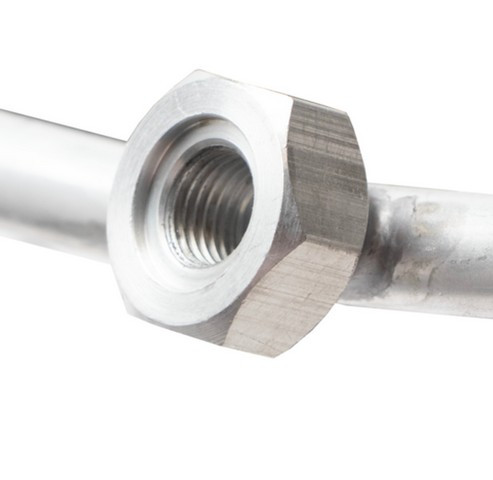

- End fittings: P-Nut fitting on both ends
- Refrigerant type: R134A
- Bracket: not included
Build and materials
- Type: hose assembly with internal heat exchanger
- Material: Aluminum / Rubber
- Connection: crimp fitting
- Hose: double wall barrier
- Muffler: included
- Service port: included
- Condition: New
- Country of origin: China
In the box

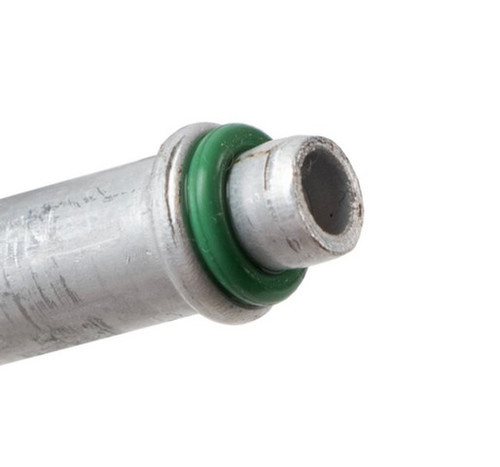

One hose assembly with its fittings, muffler and service port, plus one O-ring (24629) and two O-rings (24109). A bracket is not included, and an old bracket may not be reusable.
Interchange: 977751W210 · 211189 · HA112436C
This part cross-references / interchanges with the following part numbers:
66292, 977751W210, 211189, HA112436C
Frequently Asked Questions
Does the Four Seasons 66292 fit the 2016-2017 Kia Rio 4-cylinder 1.6L?
Yes. Four Seasons 66292 is a direct-fit A/C suction and liquid line hose assembly for the 2016-2017 Kia Rio 4-cylinder 1.6L, which takes one.
Does this A/C suction line come with O-rings and a service port?
Yes. Four Seasons 66292 includes the fittings, muffler, service port, one O-ring 24629 and two O-rings 24109. A bracket is not included.
Which refrigerants can the hose on this assembly handle?
The double wall barrier hose is compatible with R1234YF, R134A or R12. The refrigerant type listed for this hose assembly is R134A.
How can I spot a leak at this suction and liquid line hose assembly?
With the engine off and cool, look for oily residue or wet spots at the fittings and along the hose, or for visible damage. A shop can pressure-test and leak-check the A/C system.
Is 977751W210 interchangeable with Four Seasons 66292?
Yes. 977751W210 is listed as a cross-reference number for Four Seasons 66292, the A/C suction and liquid line hose assembly for the 2016-2017 Kia Rio 4-cylinder 1.6L.
