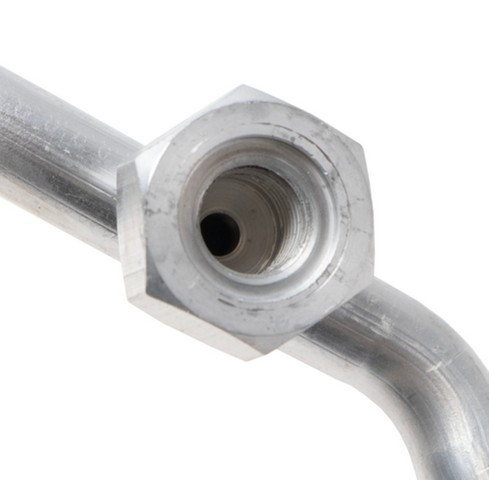

Four Seasons 66973 A/C suction and liquid line hose assembly for the 2020-2025 Kia Soul 4-cylinder 2.0L carries refrigerant through the A/C system. It is a suction and liquid line internal heat exchange (IHX) assembly, also called an A/C suction line.
- Gaskets, O-rings and seals included for the replacement
- Double wall barrier hose compatible with R1234YF, R134A or R12
- Crimp fitting connection with a P-Nut fitting on each end
- Application-specific design with a muffler
- Service port included, plus a switch service port
Quick facts
- Part: Four Seasons 66973 A/C suction and liquid line hose assembly
- Also called: A/C suction line
- Fits: 2020-2025 Kia Soul 4-cylinder 2.0L
- Material: Aluminum and rubber
- Condition: New
Warm air from the vents, oily residue at a fitting or a damaged hose can mean a line is leaking. A low refrigerant charge, a weak compressor or a clogged expansion valve can be behind those signs too, so find the cause before you buy a hose. A shop can test the system.
Fits
This is a direct-fit replacement for the 2020-2025 Kia Soul 4-cylinder 2.0L, which takes one assembly.
Specifications
Fit and size
- Quantity per vehicle: 1
- Refrigerant type: R1234YF
- End fittings: P-Nut fitting on both ends
Build and materials
- Type: suction and liquid line hose assembly with internal heat exchange (IHX)
- Material: aluminum and rubber
- Connection: crimp fitting
- Muffler: included
- Service port: included, with a switch service port
- Condition: New
- Country of origin: China
In the box
One hose assembly, supplied with its fittings. A bracket is not included.
Interchange: 97775K0220 · 211884 · A83653 · HA114554C
This part cross-references / interchanges with the following part numbers:
66973, 97775K0220, 211884, A83653, HA114554C
Frequently Asked Questions
Does the Four Seasons 66973 A/C suction and liquid line hose assembly fit the 2020-2025 Kia Soul 4-cylinder 2.0L?
Yes. Four Seasons 66973 is a direct-fit replacement for the 2020-2025 Kia Soul 4-cylinder 2.0L, which takes one.
Do the O-rings and seals come with the Four Seasons 66973 hose assembly?
Yes. Four Seasons 66973 comes with its fittings, gaskets, O-rings or seals, and a service port. A bracket is not included.
Is the double wall hose on this assembly compatible with R134A?
Yes. The double wall barrier hose is compatible with R1234YF, R134A or R12. This assembly is listed for R1234YF refrigerant.
How can I spot a leaking or damaged A/C hose assembly?
With the engine off and cool, look for oily residue at the fittings or on the hose, and for cracks, kinks or rubbed spots. A shop can pressure-test the system for leaks.
Does Four Seasons 66973 replace the 97775K0220 number?
Yes. 97775K0220 is one of the numbers this assembly replaces. The Interchange line on the page lists the rest.
