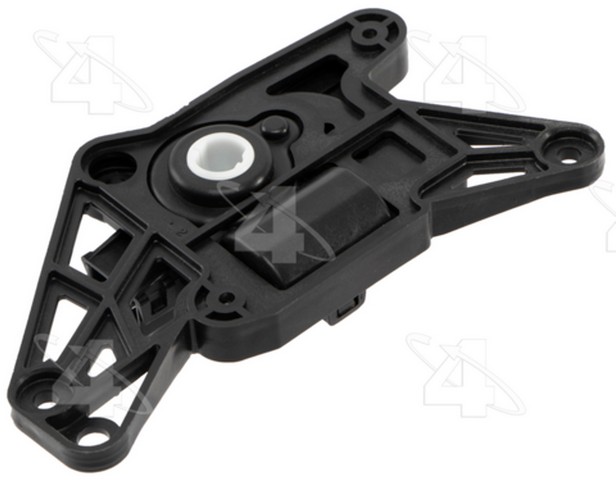

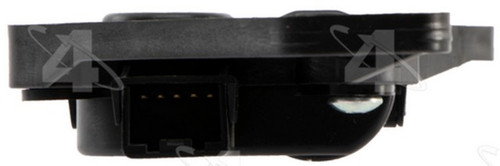

Four Seasons 73376 left mode door actuator for the 2011-2016 Hyundai Equus and other vehicles moves an air door in the HVAC system so air goes to the vents you select.
- Engineered and tested for years of trouble-free operation, backed by over 50 years of mobile A/C experience
- Meets or exceeds OE specifications for fit and function

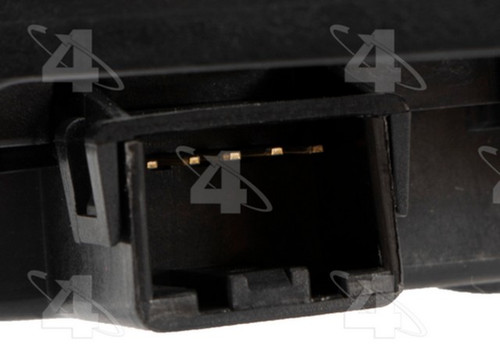

- Has an internal motor, drive gears, electronics and connections
- Tested for function, durability and longevity
Clicking from behind the dash, or air that stays on one vent setting when you change modes, can mean a failing HVAC mode door actuator. A blown fuse, a damaged air door or a faulty climate control panel can be behind these signs too, so find the real cause before you buy.
This left-side actuator also fits the 2009-2014 Hyundai Genesis and the 2009-2014 Genesis (Model) /Genesis Coupe.
Specifications
In the box: the actuator, with lever arm, gear, cam gear hardware and linkage as applicable.
Interchange: 604086 · BDAD1342 · 971543M000 · DA1430 · A60376 · MT18364
This part cross-references / interchanges with the following part numbers:
73376, 604086, BDAD1342, 971543M000, DA1430, A60376, MT18364
Frequently Asked Questions
Does the Four Seasons 73376 left mode door actuator fit the 2011-2016 Hyundai Equus?
Yes, Four Seasons 73376 is a left mode door actuator that fits the 2011-2016 Hyundai Equus. It also fits the 2009-2014 Hyundai Genesis.
What comes with the Four Seasons 73376 actuator?
Four Seasons 73376 includes a lever arm, gear, cam gear hardware and linkage as applicable to the actuator.
Is this a left or right mode door actuator?
This mode door actuator is the left-position unit, so order it for the left side.
Why is my dash clicking and the air stuck on one vent setting?
Clicking from behind the dash and air that will not change vents can mean the mode door actuator has worn out. A shop can test the system to confirm.
Does the 73376 actuator replace number 971543M000?
Yes, 971543M000 is one of the numbers this actuator replaces, along with 604086, BDAD1342, DA1430, A60376 and MT18364.
