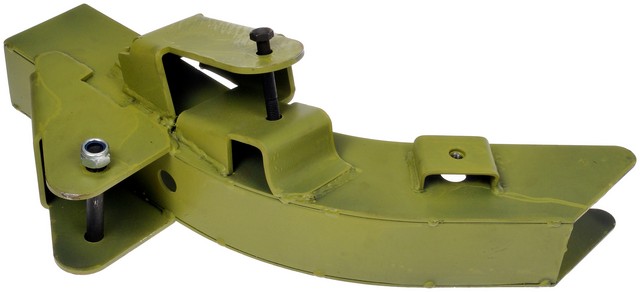

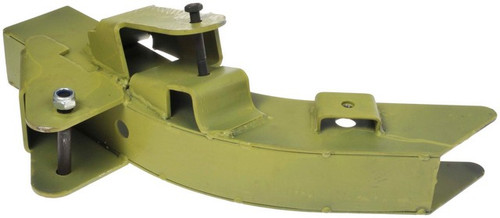

Dorman 523-283 rear right frame repair kit for the 1997-2003 Jeep TJ and other vehicles replaces a rusted frame section with heavy-gauge steel. Rust on an original frame usually leads to a full frame replacement, so this kit covers only the section that failed.
- Part of the Dorman OE FIX line
- Heavy-gauge steel construction, 4.6 mm material thickness
- Weldable primer finish to resist future corrosion
- Re-engineered with improved drainage to prevent future corrosion buildup
- Grade 10.9 bolts supplied with the kit
Quick facts
- Part: Dorman 523-283 frame repair kit
- Fits: 1997-2003 Jeep TJ and other vehicles
- Position: Rear right
- Material: Steel
- Condition: New
Visible rust-through, flaking metal or holes along the rear right frame section can mean that section needs repair. A worn control arm bushing or a loose shock mount can be behind a rattle or an uneven stance too, so find the cause before buying.
Fits
This frame repair kit for the 1997-2003 Jeep Wrangler and the 1997-2003 Jeep TJ is a direct fit and includes all OE hardware mounting positions.
Specifications
Fit and size
- Position: Rear right
- Quantity per vehicle: 1
- Material thickness: 4.6 mm
- Bracket length: 490 mm
- Bracket width: 173 mm
- Bracket depth: 73 mm
Build and materials
- Material: Steel
- Finish: Weldable primer
- Configuration: One piece, molded assembly bracket shape
- Bolt grade: 10.9
- Condition: New
- Country of origin: India
In the box
One frame bracket, two bolts and two nuts. Rivets are not included. This listing holds one kit for the rear right, which takes one; the rear left side is ordered separately.
Installation notes
- Cutting is required to fit the kit.
- Drilling is not required.
Interchange: 5140445AA · 5140674AA · 52058815AF · 52058815AJ · 52058817AE · 52059651AD · 52059652AD · 52059653AD · 68002765AA · 68017715AA
This part cross-references / interchanges with the following part numbers:
5140445AA, 5140674AA, 52058815AF, 52058815AJ, 52058817AE, 52059651AD, 52059652AD, 52059653AD, 68002765AA, 68017715AA
Frequently Asked Questions
Is Dorman 523-283 the right frame repair kit for the 1997-2003 Jeep TJ and the 1997-2003 Jeep Wrangler?
Yes. Dorman 523-283 is a direct-fit rear right frame repair kit for both the 1997-2003 Jeep TJ and the 1997-2003 Jeep Wrangler. The rear left side is a separate part.
What hardware comes with this Dorman frame repair kit?
Dorman 523-283 includes one frame bracket, two bolts and two nuts. Rivets are not included.
How thick is the steel on this frame repair kit?
The material is 4.6 mm thick. The bracket measures 490 mm long, 173 mm wide and 73 mm deep.
Does this frame repair kit need cutting or drilling?
Cutting is required to fit this kit, and drilling is not. The bracket comes finished in weldable primer.
Can I use Dorman 523-283 in place of 52058815AF?
Yes. 52058815AF is one of the numbers Dorman 523-283 replaces. The rest of the cross-reference numbers are on the Interchange line of this page.
