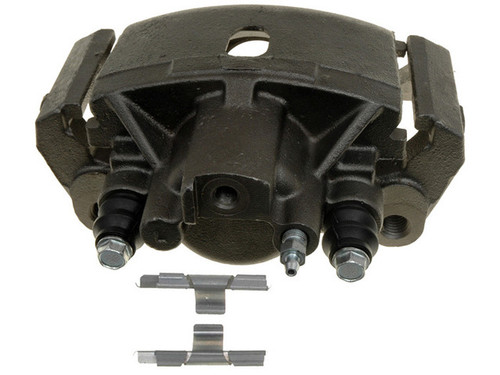

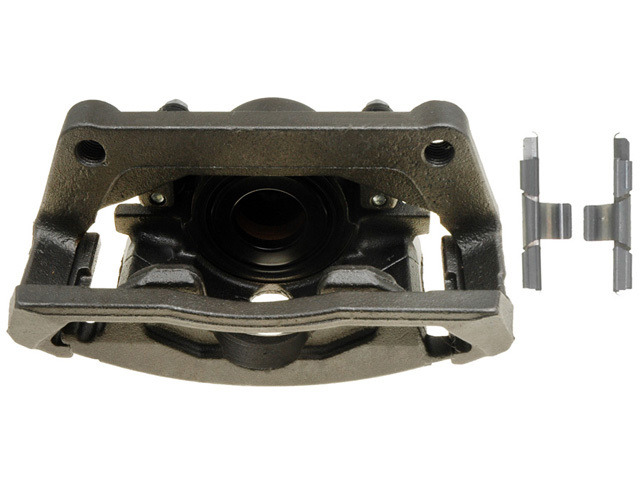

Raybestos Brakes FRC11308 rear left brake caliper for the 2011-2018 Ram 1500 and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured, semi-loaded disc brake caliper and bracket assembly is a floating design.
- Raybestos R-Line non-plated remanufactured brake caliper
- Castings, guide pins and brackets are inspected before being reused
- All-new seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation
- Silicone boots for heavy duty applications, where applicable
- 100% pressure tested
- EPDM70 rubber components for heat resistance and durability
Quick facts
- Part: Raybestos Brakes FRC11308 brake caliper
- Also called: disc brake caliper
- Fits: 2011-2018 Ram 1500 and other vehicles
- Position: Rear left
- Material: Cast iron
- Condition: Remanufactured
Fluid at the caliper, a dragging brake or uneven pad wear found at a brake service can mean this caliper is worn, though a brake hose or the rotor can also be behind those signs; sort out which before you replace it. Rear calipers are normally replaced together as a pair. This listing is a single rear left caliper, and the 2011-2018 Ram 1500 takes one at that position, with the rear right ordered separately.
Fits
This rear left brake caliper fits the 2011-2018 Ram 1500, the 2002-2010 Dodge Ram 1500 and the 2004-2009 Dodge Durango. Driving something else? Look up your year, make and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Caliper piston diameter: 53.9 mm (2.122 in)
- Bleeder screw thread: M10x1
- Bracket mounting hole size: 14.000 mm
- Bracket mounting hole thread pitch: 2.000 mm
Build and materials
- Type: Floating, semi-loaded caliper and bracket assembly
- Casting material: Cast iron
- Condition: Remanufactured
- Country of origin: Mexico
Interchange: 18-B4837 · 99-17697B · 16-4837 · 18-4837 · 18-B5096 · 18-P4836 · 141.35102 · SC2015-1 · 11-1088 · 14-1088
SC2067
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
18-B4837, 99-17697B, 16-4837, 18-4837, 18-B5096, 18-P4836, 141.35102, SC2015-1, SC2067, 11-1088, 14-1088
Frequently Asked Questions
Is the Raybestos Brakes FRC11308 a rear left brake caliper for the 2011-2018 Ram 1500?
Yes. Raybestos Brakes FRC11308 is a rear left brake caliper for the 2011-2018 Ram 1500. The rear right side is a separate part.
Is the Raybestos Brakes FRC11308 one of the 2004-2009 Dodge Durango calipers for the rear left?
Yes. Raybestos Brakes FRC11308 fits the rear left position on the 2004-2009 Dodge Durango. For other vehicles, use the "Vehicles it fits" section.
What piston size and bleeder thread does this floating rear left caliper have?
The piston diameter is 53.9 mm (2.122 in) and the bleeder screw thread is M10x1. The caliper is a floating type with a cast iron casting.
What signs can a worn rear left caliper like this one show?
Fluid around the caliper, the vehicle pulling to one side under braking or uneven pad wear found during a brake service can point to a worn caliper. Have the brakes inspected promptly.
Does the Raybestos Brakes FRC11308 interchange with 18-4837?
Yes. 18-4837 is a listed interchange number for Raybestos Brakes FRC11308, so the two are cross-referenced.
