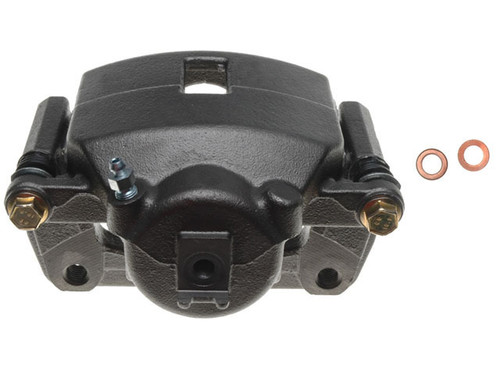

Raybestos Brakes FRC11101 front left brake caliper for the 2001-2010 Chrysler PT Cruiser clamps the brake pad against the rotor to slow the wheel. This remanufactured disc brake caliper and bracket assembly is semi-loaded, with materials matching OE specifications.
- Part of the Raybestos R-Line remanufactured caliper range
- Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings replaced with new parts for leak-free operation
- Castings, guide pins and brackets inspected before being reused
- EPDM70 rubber components for heat resistance and durability
- Silicone boots for heavy duty applications, where applicable
- Every caliper is 100% pressure tested
Quick facts
- Part: Raybestos Brakes FRC11101 brake caliper
- Also called: disc brake caliper
- Fits: 2001-2010 Chrysler PT Cruiser
- Position: Front left
- Material: Cast iron
- Condition: Remanufactured
Pulling to one side, uneven pad wear or brake fluid at the wheel can mean a caliper is sticking or leaking, but a collapsed brake hose or worn pads can be behind them too, so find the cause before you replace it.
Fits
It fits the 2001-2010 Chrysler PT Cruiser as the front left caliper. This listing is one caliper for that side; the front right is a separate part ordered on its own, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: Front left
- Quantity for this position: 1
- Piston diameter: 57.150 mm (2.250 in)
- Piston quantity: 1
- Bleeder screw thread: M10X1.00
- Bracket mounting hole: 12 mm, thread pitch 1.75 mm
Build and materials
- Type: Floating, semi-loaded, with mounting bracket included
- Casting material: Cast iron
- Surface finish: Coated (caliper and bracket)
- Casting number: 134469
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One caliper with its mounting bracket.
Interchange: 15-11144 · 99-17664A · 18-B4780 · 18-B4780A · 18-P4780 · 141.63010 · 142.63010 · 14-1144
5189294AA · SC0283 · SC0291
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
15-11144, 99-17664A, 18-B4780, 18-B4780A, 18-P4780, 141.63010, 142.63010, 5189294AA, SC0283, SC0291, 14-1144
Frequently Asked Questions
Does this front brake caliper fit the 2001-2010 Chrysler PT Cruiser?
Yes. Raybestos Brakes FRC11101 fits the 2001-2010 Chrysler PT Cruiser on the front left, and the front right caliper is a separate part ordered on its own.
Does the Raybestos Brakes FRC11101 caliper come with the mounting bracket?
Yes. It is a caliper and bracket assembly, so the mounting bracket is included with the caliper.
What size is the piston on this front left caliper?
This Raybestos Brakes FRC11101 caliper has one piston with a diameter of 57.150 mm (2.250 in). It is a floating caliper.
What does a leaking or sticking front left brake caliper look like?
Brake fluid around the wheel, the vehicle drifting to one side or a burning smell after driving can be signs. A shop can test the brake hydraulics to confirm.
What gets replaced when Raybestos remanufactures this caliper?
Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are new, and each caliper is 100% pressure tested.
