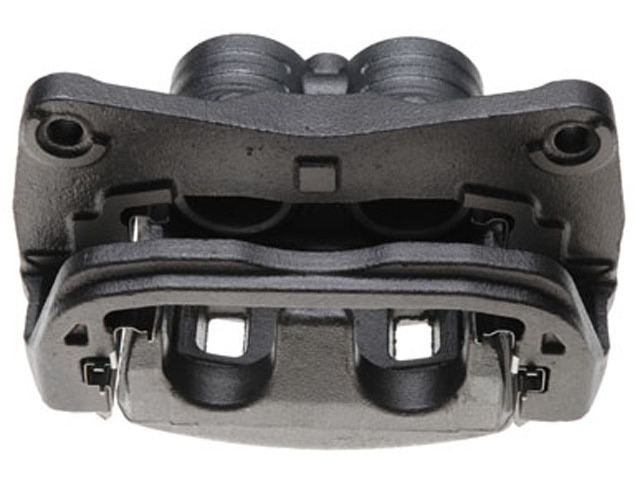

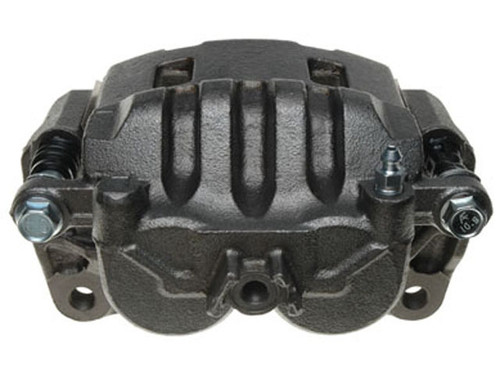

Restore reliable, leak-free front-left braking on your Subaru with the Raybestos Brakes R-Line Remanufactured Semi-Loaded Disc Brake Caliper and Bracket Assembly (MPN FRC11608). This is a floating, cast-iron caliper cataloged for the FRONT LEFT position, remanufactured from an OE core with all-new rubber and sealing components and shipped as a semi-loaded assembly with its bracket. It drops in as a direct-fit replacement for the listed applications, including the 2005-2006 SAAB 9-2X [All]; 2003-2006 Subaru Baja [All]; 2016-2017 Subaru Crosstrek [All]; 2003-2018 Subaru Forester [All] and 2014-2018 Subaru Forester [H4-2.5L]; 2003-2005 and 2008-2014 Subaru Impreza [All]; 2002-2015 Subaru Legacy [All] and 2013-2015 Subaru Legacy [H4-2.5L]; 2002-2014 Subaru Outback [All] and 2010-2014 Subaru Outback [H4-2.5L]; 2012-2014 Subaru WRX [All]; and 2014-2015 Subaru XV Crosstrek [All]. See the Buyer's Guide tab for the full list.
Remanufactured OE: Non-plated caliper rebuilt with new rubber and sealing parts; castings, guide pins, and brackets are inspected before reuse, then each unit is tested for braking performance.
New leak-critical parts: Seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are all replaced with new materials.
EPDM70 rubber & silicone boots: EPDM70 rubber components are used for heat resistance and durability, with silicone boots on heavy-duty applications where applicable.
Pressure tested: 100% pressure tested; materials match OE specifications.
Specs: floating caliper with a 1.681 in (42.7 mm) piston, M10x1 bleeder screw thread, and a 12.000 mm bracket mounting hole with 1.250 mm thread pitch. Country of origin: Mexico.
It is a semi-loaded assembly that includes the remanufactured floating caliper and its mounting bracket, with new seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings installed.
Which position does FRC11608 fit?
It is cataloged for the FRONT LEFT (driver's-side front) position. For even braking, it's good practice to service both front calipers together, though each is sold individually.
Is this a new or remanufactured caliper?
It is a remanufactured OE caliper. The casting, guide pins, and bracket are inspected and reused, while the rubber and sealing components are replaced with new parts and the unit is 100% pressure tested.
What is the piston size and bleeder thread?
The caliper uses a 1.681 in (42.7 mm) piston and an M10x1 bleeder screw thread. The bracket mounting hole is 12.000 mm with a 1.250 mm thread pitch.
Will this fit my Subaru?
It's a direct-fit replacement for the listed applications, such as the Subaru Forester, Legacy, Outback, Impreza, WRX, Baja, Crosstrek/XV Crosstrek, and SAAB 9-2X. Check the Buyer's Guide tab to confirm your exact year and engine.
